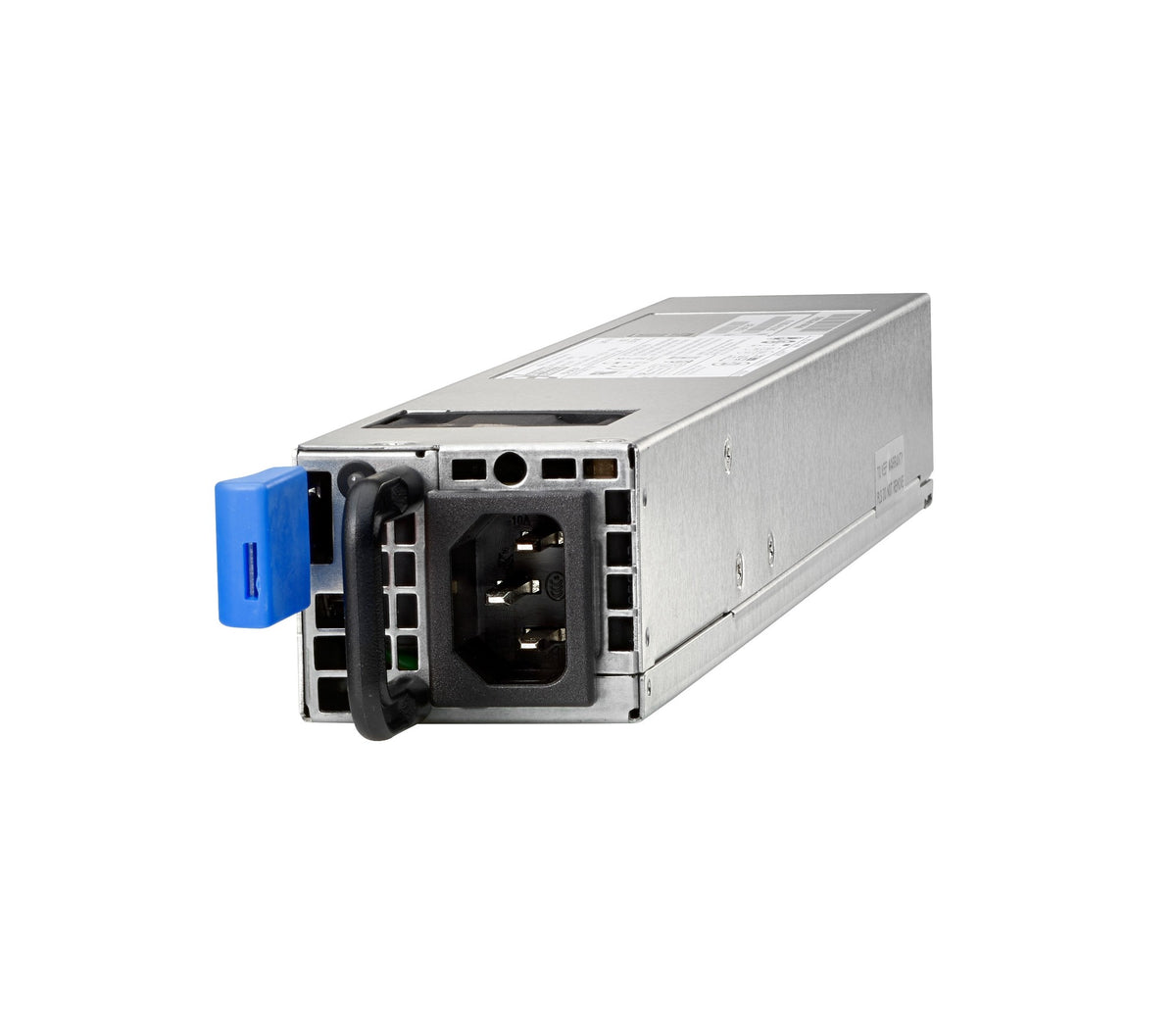

Aruba JL633A | CX 8325 650W AC Power Supply, Back-to-Front

JL633A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This hot-swappable 650W AC power supply is built for the Aruba CX 8325 switch series. It suits data centre and core deployments where a second power supply is fitted for redundancy.

The module accepts a wide 100-240VAC input range, so it works across varied electrical infrastructures. It uses Back-to-Front airflow, so it must be matched with fan trays set to the same airflow direction. The front-to-back version of this supply is JL632A. Because the unit is hot-plug and redundant, a supply can be replaced while the switch stays in service when two supplies are installed.

It is a plug-in internal module designed specifically for the 8325 platform. The switch takes two power supply slots, which lets you run the pair in a redundant arrangement.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wide-range 100-240VAC input suits varied electrical infrastructures
- 650W AC output
- Back-to-Front airflow to match the switch cooling direction
- Hot-swappable plug-in module
- Redundant operation when two power supplies are installed
- Designed specifically for the Aruba CX 8325 series

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Power supply (internal, plug-in module)
- Output power: 650 W
- AC input voltage: 100 - 240 V
- Airflow direction: Back-to-Front
- Hot-swappable: Yes
- Redundancy: Redundant when two supplies are installed
- Compatibility: Aruba CX 8325 switch series
- Dimensions (H x W x D): 41 x 51 x 320 mm
- Weight: approx. 0.93 kg
- Manufacturer part number: JL633A

FAQs

Q: Which switches does this power supply fit?
A: It is designed for the Aruba CX 8325 switch series.

Q: What airflow direction does it use?
A: It uses Back-to-Front airflow. The airflow must match the fan trays and the switch airflow direction. The front-to-back counterpart is JL632A.

Q: What input voltage does it accept?
A: It accepts a 100-240VAC input and delivers 650W of output power.

Q: Can I run two power supplies for redundancy?
A: Yes. The switch takes two power supply slots, and the modules are hot-plug and redundant when both are installed.

Q: Can it be replaced while the switch is running?
A: Yes. The module is hot-swappable, so with a second supply installed it can be replaced without taking the switch offline.
