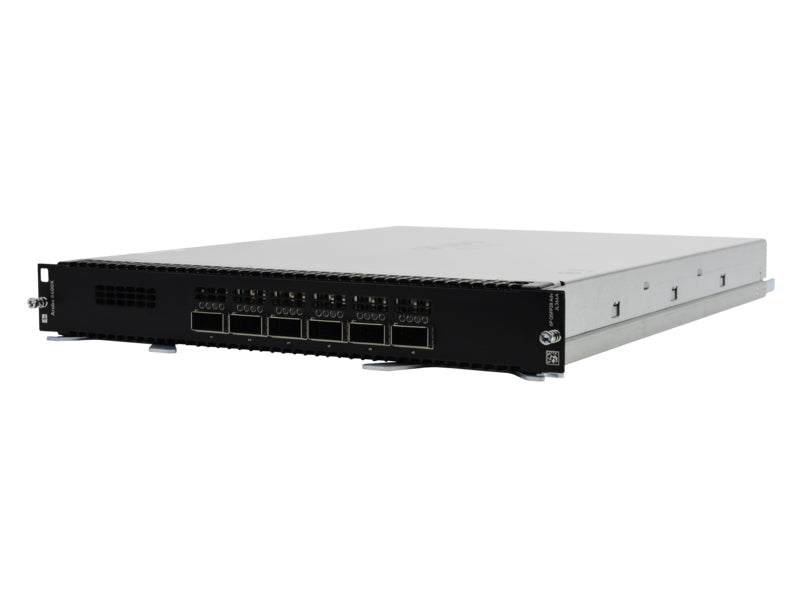

Aruba JL366A | CX 8400 6-Port 40G/100G QSFP28 Line Module, No PoE
SKU:JL366A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The JL366A is a six-port 40/100GbE QSFP28 line module for the Aruba CX 8400 Switch Series, the modular 8-slot chassis used in campus core and data centre core or aggregation deployments. It gives line-rate 40GbE and 100GbE connectivity and runs under the AOS-CX operating system of the host chassis.
Each module provides 6 x QSFP28 ports that support 40GbE and 100GbE, with 3 GB of module memory. There is no PoE on this module. A fully populated 8400 chassis can carry up to 48 x 40/100GbE QSFP28 ports, with a switching capacity of 19.2 Tbps and 1.2 Tbps per slot. Lane splitting is 4 x 25G breakout only, as the module has no 10G MAC. 100GbE requires AOS-CX 10.00.0005 or later and 40GbE requires 10.00.0006 or later. No separate licence is required for the module itself.
The module works only in the Aruba CX 8400 chassis, alongside the 8400X fabric module JL367A and management module JL368A. It is suited to Aruba 100G QSFP28 DAC (JL307A), 100G QSFP28 MPO SR4 (JL309A) and 100G QSFP28 LC LR4 (JL310A) connections.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Line-rate 40GbE and 100GbE connectivity in the compact 8-slot Aruba CX 8400 chassis
- AOS-CX operating system with REST APIs, Python scripting and Network Analytics Engine
- Virtual Switching Extension (VSX) with redundant management, power and fabric
- Modular design with redundant fabric, management, power and fans
- 4 x 25G breakout lane splitting on the QSFP28 ports
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 6 x QSFP28 (40GbE / 100GbE)
- Port speed: line rate
- PoE: None
- Module memory: 3 GB
- Host chassis: Aruba CX 8400 (JL376A chassis, 8U)
- Chassis line module slots: 8
- Chassis maximum 40/100GbE QSFP28 ports: 48
- Chassis switching capacity: 19.2 Tbps (1.2 Tbps per slot)
- Lane splitting: 4 x 25G breakout only (no 10G MAC on this module)
- Minimum AOS-CX: 10.00.0005 (100G), 10.00.0006 (40G)
- Chassis dimensions (W x D x H): 44.1 x 66.0 x 35.1 cm (8U)
- Chassis non-operating temperature: -40 to 70 C
- Chassis maximum operating altitude: 3,048 m
FAQs
Q: Does this module need a separate licence?
A: No separate licence is required for the module itself. It runs under the AOS-CX operating system of the Aruba CX 8400 chassis.
Q: Which chassis does the JL366A work in?
A: It works only in the Aruba CX 8400 Switch Series chassis, used together with the 8400X fabric module JL367A and management module JL368A.
Q: Does it support PoE?
A: No. This module has no PoE. It is powered from the 8400 chassis power supplies.
Q: Which optics and cables work with it?
A: Aruba 100G QSFP28 DAC (JL307A), 100G QSFP28 MPO SR4 (JL309A) and 100G QSFP28 LC LR4 (JL310A) are compatible. 40G QSFP+ optics need AOS-CX 10.00.0006 or later.
Q: Which AOS-CX version does it require?
A: 100GbE operation requires AOS-CX 10.00.0005 or later, and 40GbE operation requires 10.00.0006 or later.
