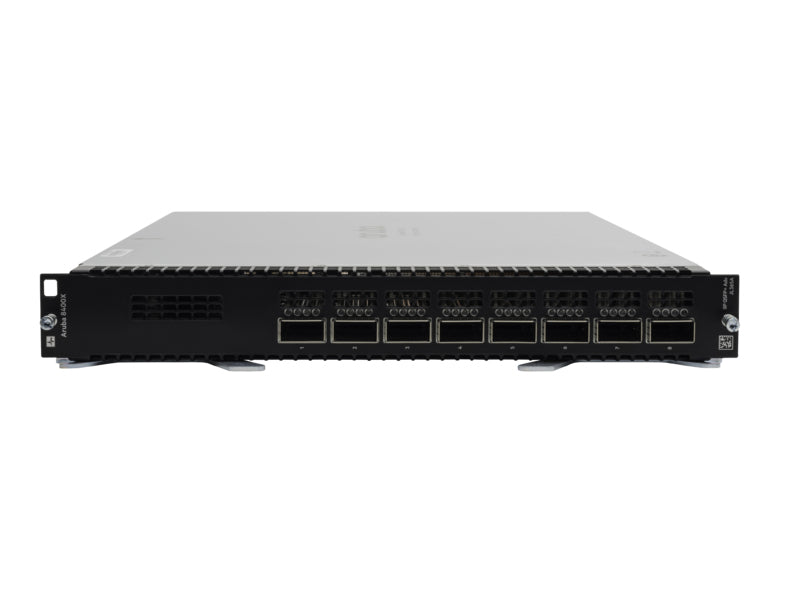

Aruba JL365A | CX 8400 8-Port 40GbE QSFP+ Line Card, 1.5GB VoQ
SKU:JL365A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The 8400X 8-port 40GbE QSFP+ Advanced Module is a line card for the Aruba CX 8400 modular chassis. It suits campus core and aggregation, and data centre core, aggregation or leaf/spine deployments that need high-density, line-rate 40GbE uplinks.
The module provides 8 x 40GbE QSFP+ ports with 1.5 GB of VoQ buffer. Switching and routing are distributed on the module, and it runs AOS-CX with VSX, VXLAN with BGP-EVPN and the Network Analytics Engine. A fully populated 8400 chassis offers 8 line-module slots, up to 64 x 40GbE ports, 19.2 Tbps of switching capacity (1.2 Tbps per slot) and throughput of up to 7.142 Bpps.
It installs in the Aruba CX 8400 8-slot chassis alongside the 8400X 7.2 Tbps Fabric Module (JL367A) and 8400 Management Module (JL368A). AOS-CX is included with a perpetual set of native features, with an optional term-based Advanced Feature Pack for container infrastructure and hosted applications.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Advanced Layer 2/3 feature set including BGP, EVPN, OSPF, VRF and IPv6
- Dynamic VXLAN with BGP-EVPN for segmentation in data centre and campus networks
- Virtual Switching Extension (VSX) for high availability
- AOS-CX with built-in REST APIs, Python scripting and a time-series database
- Network Analytics Engine (NAE) for monitoring and automated troubleshooting
- Data Centre Bridging (PFC, ETS, DCBX) with lossless iSCSI, RoCE v1/v2 and NVMe over Fabrics support
- Hot-swappable modules in a passive-design chassis
- Unsupported Transceiver Mode (UTM) for 1G and 10G transceivers and DACs
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Module: 8400X 8-port 40GbE QSFP+ Advanced Module
- Ports: 8 x 40GbE QSFP+
- Module VoQ buffer: 1.5 GB
- Line-module slots (chassis): 8
- Maximum 40GbE QSFP+ ports per chassis: 64
- Management module slots (chassis): 2
- Fabric module slots (chassis): 3
- Power supply slots (chassis): 4
- Switching capacity (chassis): 19.2 Tbps (1.2 Tbps per slot)
- Throughput (chassis): up to 7.142 Bpps
- IPv4 host table: 756,000
- IPv6 host table: 524,000
- IPv4 unicast routes: 1,011,712
- IPv6 unicast routes: 524,288
- MAC table size: 768,000
- IGMP and MLD groups: 32,767 each
- Jumbo frame size: up to 9K bytes
- Chassis dimensions (W x D x H): 44.1 x 66.0 x 35.1 cm (8U)
- Operating temperature: 0 to 40 C, 5% to 95% non-condensing
- Non-operating temperature: -40 to 70 C
- Maximum operating altitude: 3,048 m
FAQs
Q: Does this line card need a separate software licence?
A: AOS-CX is included at no cost with a perpetual set of native features. An optional term-based CX Advanced Feature Pack or an Aruba Central Advanced subscription unlocks container infrastructure and hosted applications.
Q: Which chassis does the JL365A install in?
A: It installs in the Aruba CX 8400 8-slot chassis, used with the 8400X 7.2 Tbps Fabric Module (JL367A) and the 8400 Management Module (JL368A).
Q: What power does the chassis need?
A: The module draws power from the 8400 chassis, which has 4 power supply slots and uses the X382 54VDC 2700W AC power supply (JL372A). At least 2 supplies are needed for a fully loaded chassis.
Q: Which 40G optics and cables work with the QSFP+ ports?
A: Genuine Aruba options include the JH231A (SR4), JH232A (LR4), JH233A (eSR4, 300m), JL308A (BiDi, 150m) and Q9G82A (ER4, 40km) transceivers, plus the JH234A, JH235A and JH236A DAC cables in 1, 3 and 5 m.
Q: How many 40GbE ports can a chassis hold with this module?
A: With all 8 line-module slots populated, a single 8400 chassis supports up to 64 x 40GbE QSFP+ ports.
