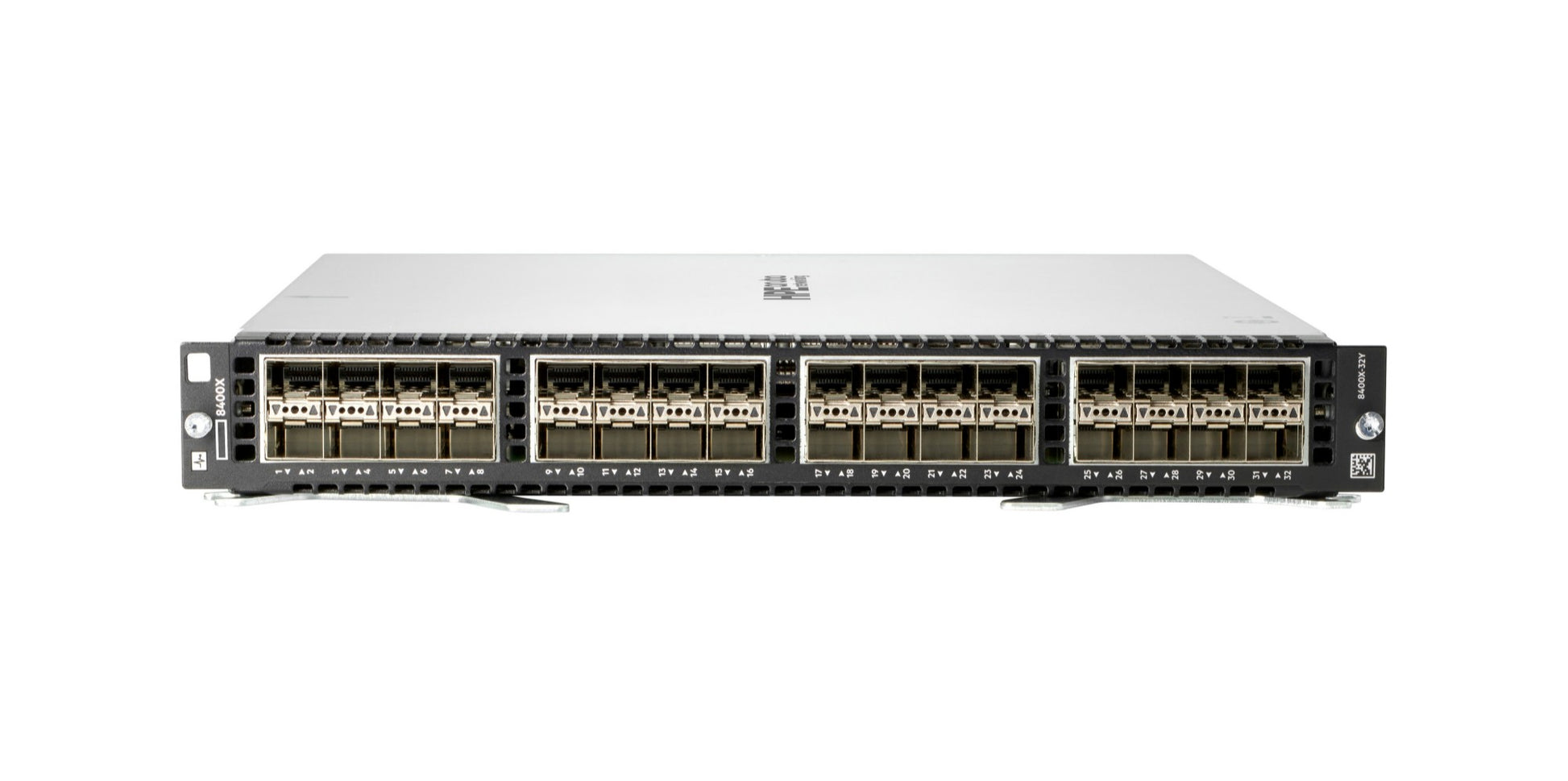

Aruba JL363A | CX 8400X 32-Port 10GbE SFP/SFP+ Line Card, MACsec
SKU:JL363A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba CX 8400X 32-port 10GbE SFP/SFP+ line card is built for the modular Aruba CX 8400 chassis, serving campus core and data centre core or aggregation roles. It suits high-density 10GbE fibre connectivity where line-rate link encryption is needed, such as encrypted inter-switch or inter-site links.
The module provides 32 SFP/SFP+ ports accepting 1G and 10G transceivers, with hardware MACsec (IEEE 802.1AE) encryption, which is unique to this card in the 8400 family. A 1.5GB module VoQ buffer supports demanding traffic loads, and jumbo frames up to 9K bytes are supported. Eight line module slots in the chassis allow up to 256 10GbE SFP/SFP+ ports, and the card runs AOS-CX with the Network Analytics Engine. The line card itself needs no separate licence.
It works with the CX 8400 chassis alongside the 8400X Fabric Module JL367A and Management Module JL368A. Supported optics include J9150D 10G SR, J9151E 10G LR, J9153D 10G ER, J4860D 1G LH, J8177D 1G RJ45 and JL563A 10GBASE-T (ports 1-12 only). J9152D 10G LRM and the J9285D 7m DAC are supported only on this 32-port card.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hardware MACsec (IEEE 802.1AE) encryption on all 32 ports
- Fully distributed architecture with switching and routing performed in the line modules
- AOS-CX operating system with Network Analytics Engine and REST APIs
- VSX active-active design with Live Upgrade support
- Data Center Bridging with PFC, ETS and DCBX
- Jumbo frame support up to 9K bytes
- Loopback detection and packet storm protection
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Module type: Line module (8400X Advanced Module)
- Ports: 32 x 10GbE SFP/SFP+ (1G/10G transceivers)
- Encryption: IEEE 802.1AE MACsec in hardware
- Module VoQ buffer: 1.5GB
- Chassis line module slots: 8
- Maximum 10GbE SFP/SFP+ ports per 8400 chassis: 256 (8 x 32-port modules)
- Maximum 10GBASE-T transceivers (JL563A): 12, ports 1-12 only
- Chassis switching capacity: 19.2 Tbps
- Chassis throughput: up to 7.142 Bpps
- Chassis IPv4 host table: 756,000
- Chassis IPv6 host table: 524,000
- Chassis IPv4 unicast routes: 1,011,712
- Chassis IPv6 unicast routes: 524,288
- Chassis MAC table size: 768,000
- Chassis IGMP groups: 32,767
- Chassis MLD groups: 32,767
- Maximum frame size (jumbo): 9K bytes
- Operating temperature (chassis): 0 to 40 C, 5% to 95% non-condensing
- Non-operating temperature (chassis): -40 to 70 C
- Maximum operating altitude: 3,048 m (10,000 ft)
- Chassis dimensions (W x D x H): 441 x 660 x 351 mm (8U)
FAQs
Q: Does this line card need its own licence?
A: No. The line module needs no separate licence. It runs AOS-CX, and the CX switch includes an embedded CX Foundation licence, with an optional CX Advanced licence upgrade.
Q: Which chassis does it fit?
A: It fits the Aruba CX 8400 8-slot chassis, together with the 8400X Fabric Module JL367A and Management Module JL368A. Up to 8 line modules can be installed per chassis.
Q: What power does it need?
A: It is powered from the CX 8400 chassis, which has 4 power supply slots for the JL372A power supply. A fully loaded chassis with 8 line modules needs at least 2 power supplies.
Q: Which optics and cables work with it?
A: Supported parts include J4860D 1G LH, J8177D 1G RJ45, J9150D 10G SR, J9151E 10G LR, J9153D 10G ER, JL563A 10GBASE-T and the J9281D and J9283D DAC cables. The J9152D 10G LRM optic and J9285D 7m DAC are supported only on this 32-port card.
Q: How does it differ from the other CX 8400 line cards?
A: The JL363A offers 32 SFP/SFP+ ports at 1G/10G with MACsec. The JL365A is 8-port 40GbE QSFP+, the JL366A is 6-port 40/100GbE QSFP28 and the JL687A is 32-port 1/10/25G SFP28.
