Arista

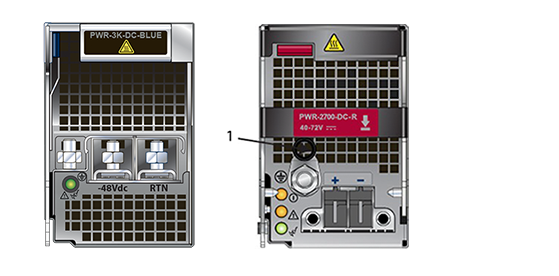

Arista PWR-3K-DC-BLUE | 7300 Series 3000W DC Power Supply, Blue Handle, -48V

SKU:PWR-3K-DC-BLUE

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 3000W DC power supply module for the Arista 7300 Series (7300X and 7300X3) modular data centre switches. It suits DC-powered data centres and telecom facilities that need high-density spine and leaf switching with N+N power redundancy in -48V environments.

The module accepts -48 to -60V DC input at up to 69A (at -48V) and delivers 3000W of output at a typical 90% efficiency. It supports load sharing and grid redundancy and is hot-swappable, so a failed module can be replaced without taking the chassis offline. A 7304 chassis holds up to 4 power supplies and a 7308 holds up to 6, which allows power to be provisioned incrementally on smaller input circuits. The module measures 7.0 x 10.5 x 29.6 cm and weighs 2.49 kg.

The blue handle identifies the air-inlet (forward airflow, front-to-rear) version. It must be matched with fan modules and a chassis set to the same airflow direction. The red-handle PWR-3K-DC-RED is the reverse airflow equivalent. It fits the DCS-7304 and DCS-7308 chassis, including the X3 variants. No licence or subscription is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 3000W DC power supply for 7300 Series modular switches
- Hot-swappable, so power supplies can be replaced without downtime
- Load sharing with support for grid redundancy in an N+N power design
- Variable power supply fan speeds optimise efficiency and reduce noise
- Multiple smaller supplies allow incremental provisioning and smaller input circuits
- Blue handle marks the air-inlet (forward airflow) module to match the fan modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Model number: PWR-3K-DC-BLUE
- Power supply type: 3000W DC
- Output power: 3000W
- Input voltage: -48 to -60V DC
- Input current: 69A max at -48V
- Input frequency: DC
- Efficiency (typical): 90%
- Input connector: AWG #2 max
- DC input wire size: 2-4 AWG stranded copper
- Fan power draw (typical/max): 43W / 43W
- Dimensions (WxHxD): 7.0 x 10.5 x 29.6 cm (2.75 x 4.13 x 11.65 in)
- Weight: 2.49 kg (5.5 lbs)
- Redundancy: load sharing, grid redundancy, hot-swappable
- Airflow: forward (front-to-rear), blue handle
- Chassis support: DCS-7304 and DCS-7308

FAQs

Q: Does this power supply need a licence?
A: No. It is a hardware power module and requires no licence or subscription.

Q: Which chassis does it fit?
A: It fits the Arista 7300 Series chassis DCS-7304 and DCS-7308, including the X3 variants such as DCS-7304X3 and DCS-7308X3. A 7304 holds up to 4 power supplies and a 7308 holds up to 6.

Q: What does the blue handle mean?
A: The blue handle marks the air-inlet (forward airflow, front-to-rear) version. It must be matched with fan modules and chassis airflow in the same direction. The red-handle PWR-3K-DC-RED is the reverse airflow version.

Q: What DC input and wiring does it need?
A: It runs from -48 to -60V DC at up to 69A (at -48V). Arista recommends 2-4 AWG stranded copper wire and lugs, with branch circuit protection of 100A DC.

Q: Can it be replaced while the switch is running?
A: Yes. It is hot-swappable and supports load sharing and grid redundancy, so with a redundant power design a module can be replaced without taking the chassis offline.
