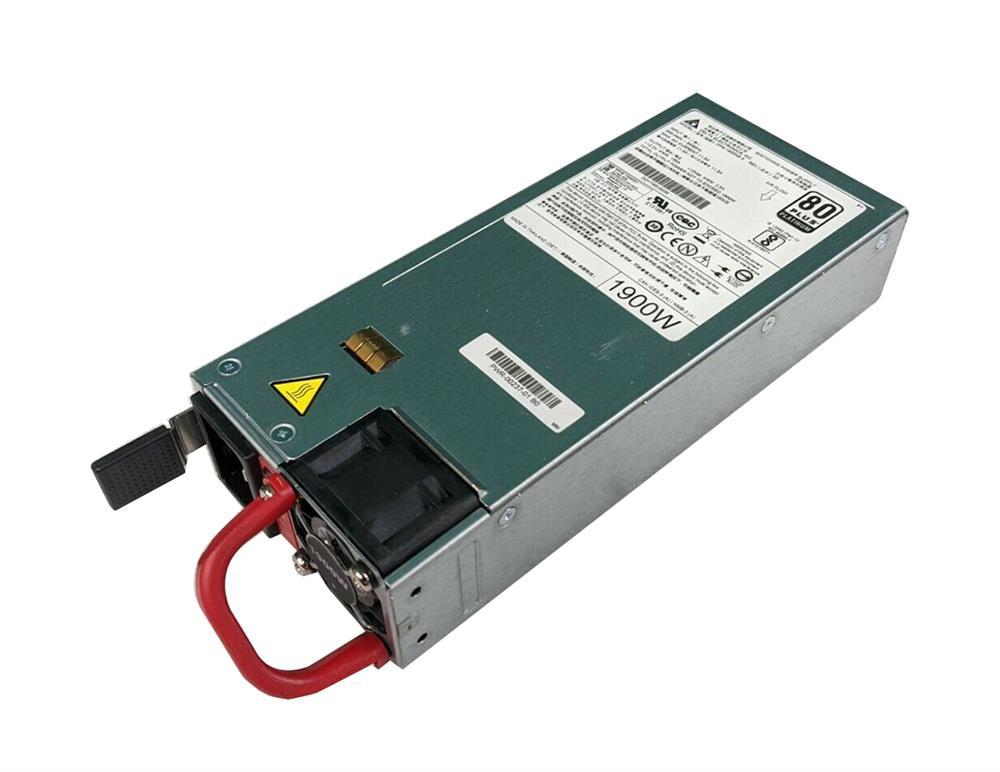

Arista PWR-1900AC-F | 1900W AC Power Supply for 7260CX and 7280R, Front-to-Rear

SKU:PWR-1900AC-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-1900AC-F is a hot-swap 1900W AC power supply module for Arista 7260CX and 7280R Series data centre switches. It is suited to leaf, spine and routing deployments that need redundant power and front-to-rear airflow, and it works well as a spare or replacement unit for an existing chassis.

The module runs from a 200-240V AC, 50/60 Hz input, drawing 11.2 to 9.5A typical through an IEC 60320 C20 inlet, so a C19-C20 or other C20-compatible power cord is needed rather than a standard C13/C14 cord. It delivers 1900W at 93% Platinum efficiency and has an integrated fan with front-to-rear airflow. It supports 1+1 redundant operation.

The front-to-rear variant should only be fitted to switches with front-to-rear airflow fans. The rear-to-front equivalent is PWR-1900AC-R, and airflow directions must not be mixed within one chassis. DC alternatives are PWR-1900-DC-F and PWR-1900-DC-R.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable power supply for redundant 1+1 operation
- Integrated fan with front-to-rear airflow
- 93% Platinum efficiency
- High-voltage 200-240V AC input
- Common 1900W AC PSU across 7260CX and 7280R platforms

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Output power: 1900W
- Input voltage: 200-240V AC
- Typical input current: 11.2 - 9.5A
- Input frequency: 50/60 Hz
- Input connector: IEC 60320 C20
- Efficiency (typical): 93% Platinum
- Airflow: Front-to-rear
- Redundancy: Hot-swap, 1+1 capable
- Compatibility: Arista 7260CX Series and 7280R Series
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m (10,000 ft)
- Certifications (7280R platform): BSMI, CE, KCC, NRTL, RCM, UKCA, VCCI

FAQs

Q: What power cord does this power supply need?
A: It has an IEC 60320 C20 inlet, so a C19-C20 or other C20-compatible cord is required. A standard C13/C14 cord is not suitable.

Q: What input voltage does it accept?
A: It runs from a 200-240V AC, 50/60 Hz supply, drawing 11.2 to 9.5A typical.

Q: Which switches is it compatible with?
A: It is used in the Arista 7260CX Series, such as the 7260CX-64 and 7260CX3-64E, and in the 7280R Series.

Q: Can I mix airflow directions in one chassis?
A: No. Airflow directions must not be mixed in a single chassis. Use the -F front-to-rear variant only with front-to-rear airflow fans. The rear-to-front equivalent is PWR-1900AC-R.

Q: Is there a DC version of this power supply?
A: Yes. The DC alternatives are PWR-1900-DC-F for front-to-rear airflow and PWR-1900-DC-R for rear-to-front airflow.
