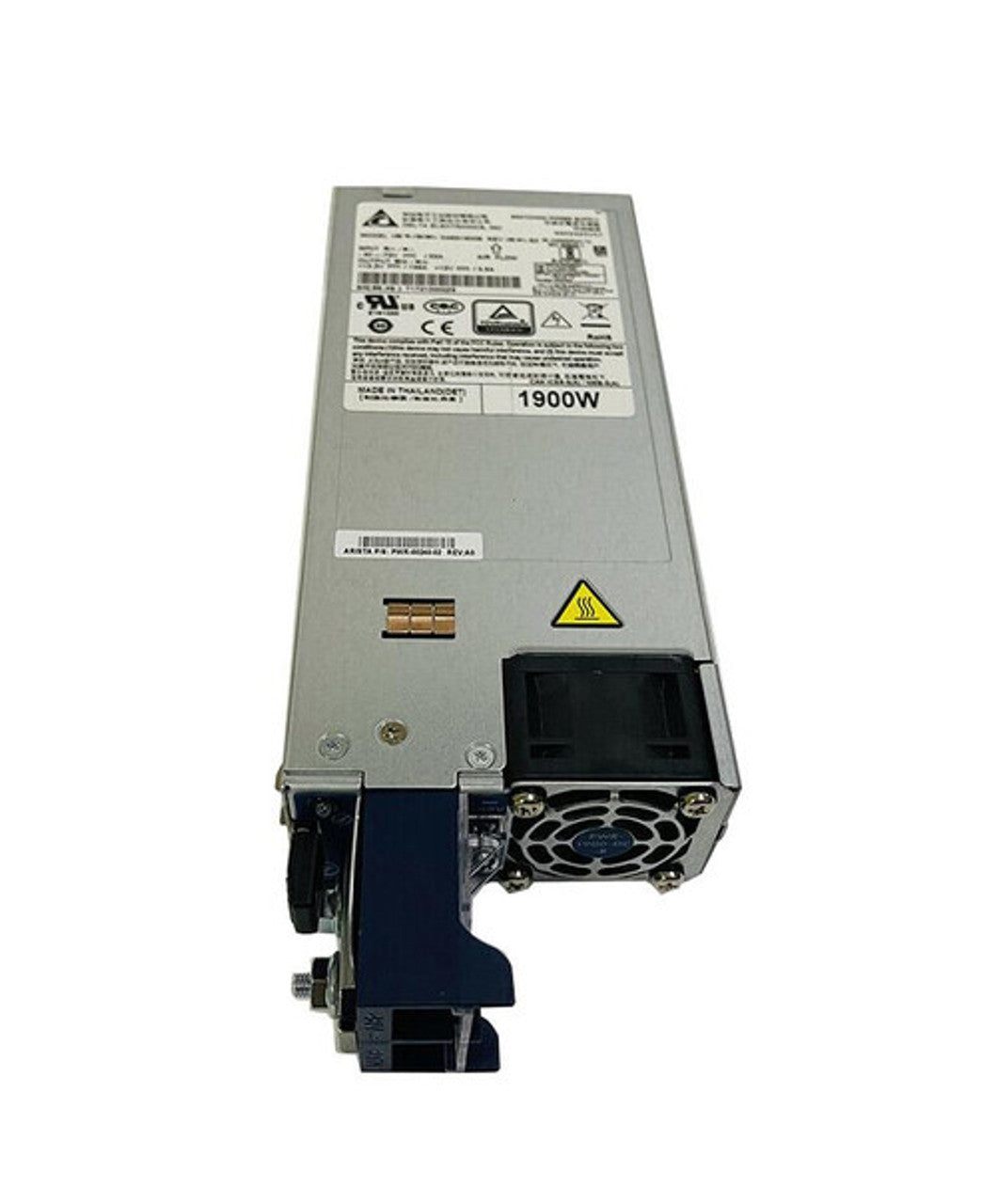

Arista PWR-1900-DC-R | 7280R/7260X 1900W DC Power Supply, Rear-to-Front
SKU:PWR-1900-DC-R
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a spare 1900W DC power supply module for Arista 7260X/7260X3 and 7280R Series data centre switches. It suits data centre and telco or central-office sites running a -48V DC power plant, with the switches deployed in spine, leaf and routing roles.
The PWR-1900-DC-R is the rear-to-front airflow variant, so it must be paired with switches and fan modules that also use rear-to-front (reverse) airflow. It accepts a 40-72 VDC input (nominal -48 to -60 VDC), with a typical input current of 44A maximum at -48V, and connects through AWG #6 maximum DC terminals. Output is rated at 1900W with a typical efficiency of 95%.
The module is hot-swappable and supports power redundancy when two PSUs are installed. It fits platforms that use the 1900W PSU slot, such as the 7260CX3-64. The front-to-rear counterpart is PWR-1900-DC-F, and the AC equivalents are PWR-1900AC-F and PWR-1900AC-R. No licence is required for the power supply itself.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- DC-input power supply for data centre and telco-style -48V DC power plants
- Rear-to-front airflow suits switches deployed with ports at the rear of the rack
- Approximately 95% typical efficiency
- Field-replaceable spare module for 7260X/7260X3 and 7280R Series switches
- Supports power redundancy when two PSUs are installed
- Hot-swappable design for replacement without taking the switch offline
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: PWR-1900-DC-R
- Rated output power: 1900W
- Input type: DC
- Input voltage: 40-72 VDC (nominal -48 to -60 VDC)
- Typical input current: 44A max at -48V
- Input connector: AWG #6 max DC terminal
- Typical efficiency: 95%
- Airflow direction: Rear-to-front (R)
- Compatible platforms: 7260X/7260X3 Series and 7280R Series
- Form: Hot-swappable, redundant PSU module
- Operating temperature (7280R system): 0 to 40 C
- Storage temperature (7280R system): -40 to 70 C
- Relative humidity (7280R system): 5 to 95%
- Operating altitude (7280R system): 0 to 3,000 m
- Certifications (7280R system): BSMI, CE, KCC, NRTL, RCM, UKCA, VCCI
- RoHS: 2011/65/EU and 2015/863/EU
FAQs
Q: Does this power supply need a licence?
A: No. The power supply itself does not require any licence or subscription.
Q: What input power does the PWR-1900-DC-R need?
A: It runs from a 40-72 VDC input (nominal -48 to -60 VDC). Typical input current is 44A maximum at -48V, and it connects through AWG #6 maximum DC terminals.
Q: Which Arista switches is it compatible with?
A: It fits Arista 7260X/7260X3 Series and 7280R Series switches that use the 1900W PSU slot, for example the 7260CX3-64.
Q: Which airflow direction should I choose?
A: Match the airflow of the switch and fan modules. The -R model is for rear-to-front (reverse) airflow. The front-to-rear counterpart is PWR-1900-DC-F.
Q: Is there an AC version of this power supply?
A: Yes. The AC equivalents are PWR-1900AC-F for front-to-rear airflow and PWR-1900AC-R for rear-to-front airflow.
