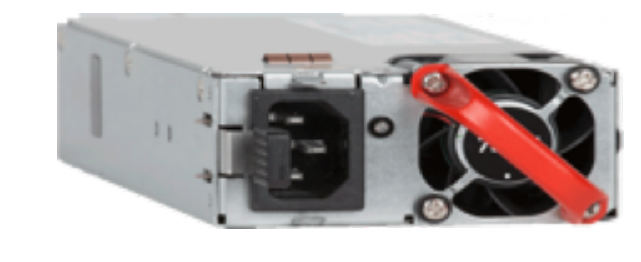

• Silver Arista PWR-1511-AC-RED 1500W 1RU power supply unit with red fan handle and black connectors front view
1 1

Arista

Arista PWR-1511-AC-RED | 7000 1500W AC Power Supply, Front-to-Rear

PWR-1511-AC-RED

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This hot-swappable 1500W AC power supply is built for selected Arista 7000 Series fixed-configuration data centre switches. It suits spare or replacement duty in leaf, spine and routing racks that use front-to-rear (cold-aisle intake) airflow and redundant 200-240V AC feeds.

It is a 1RU, 73.5mm module delivering 1500W of output with a typical efficiency of 93%, in line with 80 PLUS Platinum-class performance. Input is 200-240V AC at 50/60 Hz with a typical input current of 9.6 A, through an IEC 60320 C14 inlet. The red handle identifies the front-to-rear (forward) airflow version, so it must match the fan modules and airflow direction of the chassis. A high-line feed is required, so it does not take 100-120V.

Arista datasheets list it for the 7280R3 Series (including 7280DR3-24 and 7280DR3K-24), the 7060X5 Series (7060DX5-32 and 7060CX5-56D8, minimum EOS 4.29.1 for the red front-to-rear version) and the 7050X3 Series. Use it only with front-to-rear airflow configurations such as FAN-7011H-F or equivalent, and do not mix it with the blue rear-to-front PSU variants in the same chassis. The power supply itself needs no licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable and redundant (N+1) plug-in module
- Platinum-class efficiency of about 93% reduces power and cooling cost
- Red handle identifies front-to-rear (forward) airflow
- AC-input model with an IEC C14 inlet
- 1RU, 73.5mm form factor for selected Arista 7280R3, 7060X5 and 7050X3 switches
- Regulatory approvals listed in the switch datasheet include RCM (Australia/New Zealand), CE, UKCA, FCC Class A and NRTL

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output power: 1500 W
- Input voltage: 200-240V AC
- Input frequency: 50/60 Hz
- Typical input current: 9.6 A
- Input connector: IEC 60320 C14
- Efficiency (typical): 93%, 80 PLUS Platinum-class
- Airflow direction: Front-to-rear (forward, red handle)
- Form factor: 1RU, 73.5 mm
- Hot-swappable: Yes, N+1 redundant
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m (10,000 ft)

FAQs

Q: Does this power supply need a licence?
A: No. The power supply itself needs no licence or subscription.

Q: What input voltage does it require?
A: It takes 200-240V AC at 50/60 Hz with a typical input current of 9.6 A, through an IEC 60320 C14 inlet. It requires a high-line feed and does not take 100-120V.

Q: Which Arista switches does it work with?
A: It is listed for the 7280R3 Series (such as 7280DR3-24 and 7280DR3K-24), the 7060X5 Series (7060DX5-32 and 7060CX5-56D8, minimum EOS 4.29.1 for the red front-to-rear version) and the 7050X3 Series. Check the platform datasheet for other models.

Q: Can I mix it with blue rear-to-front power supplies?
A: No. The red handle denotes front-to-rear airflow, so use it only with front-to-rear airflow configurations such as FAN-7011H-F or equivalent. Do not mix it with the blue rear-to-front PSU variants in the same chassis.

Q: Is it hot-swappable?
A: Yes. It is a hot-swappable plug-in module that supports N+1 redundancy in chassis with multiple power supply slots.
