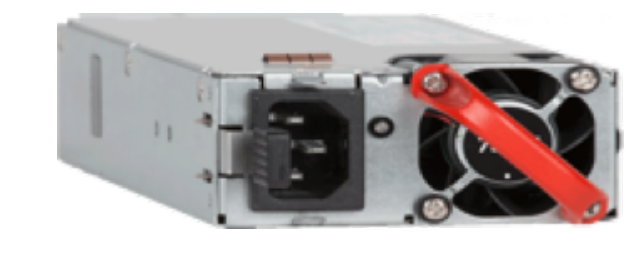

• Silver-colored arista pwr-1011-ac-red 1000w power supply unit with red fan handle and black connectors front-to-rear airflow
1 1

Arista

Arista PWR-1011-AC-RED | 7000 1000W AC Power Supply, Front-to-Rear Airflow

PWR-1011-AC-RED

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 1000W AC power supply module is built for 1RU Arista data centre switches in the 7050X3, 7280R3 and 7280R3A families. The red handle marks forward (front-to-rear) airflow, and the module is hot-swappable, so it suits both replacement and redundant power configurations in leaf, spine and routing roles.

It accepts 100-240V AC at 50/60Hz through an IEC 60320 C14 input, with a typical input current of 12.0 to 6.0A. Output is 1000W at 93% efficiency to 80 PLUS Platinum level, which helps keep power draw and heat down in dense racks. The form factor is 1RU at 73.5mm.

It is listed as a supported PSU for the 7050X3 series, the 7280R3 series and the 7280R3A series, and pairs with fan trays such as FAN-7011M-F/R and FAN-7011H depending on the switch. Use the red forward-airflow variant only where the fan tray airflow matches, and do not mix it with blue reverse-airflow units.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable power supply module
- Supports 1+1 redundant power supply configurations in supported switches
- Handle colour indicates airflow direction (red = forward / front-to-rear)
- 93% 80 PLUS Platinum efficiency
- Wide-range 100-240V AC input
- Used across the 7050X3, 7280R3 and 7280R3A switch families

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output power: 1000W
- Input voltage: 100-240V AC
- Input frequency: 50/60Hz
- Typical input current: 12.0 - 6.0A
- Input connector: IEC 60320 C14
- Efficiency: 93% (80 PLUS Platinum)
- Airflow: Forward (front-to-rear), red handle
- Form factor: 1RU, 73.5mm
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Operating altitude: 0 to 3,000 m (10,000 ft)
- Relative humidity: 5 to 90% (7050X3) or 5 to 95% (7280R3)

FAQs

Q: Which Arista switches does this power supply fit?
A: It is a supported PSU for the Arista 7050X3 series, the 7280R3 series and the 7280R3A series of 1RU fixed-configuration switches. Check your switch model's quick start guide to confirm support.

Q: What does the red handle mean?
A: The red handle indicates forward (front-to-rear) airflow. Blue handle units are reverse airflow. Airflow direction should match the fan trays in the switch, and red and blue units should not be mixed.

Q: Does this power supply need a licence?
A: No. The power supply itself requires no licence or subscription.

Q: What power input does it need?
A: It takes 100-240V AC at 50/60Hz through an IEC 60320 C14 connector, with a typical input current of 12.0 to 6.0A. It delivers 1000W output.

Q: Can I use two for redundancy?
A: Yes. It supports 1+1 redundant power supply configurations in the supported switches, and the module is hot-swappable.
