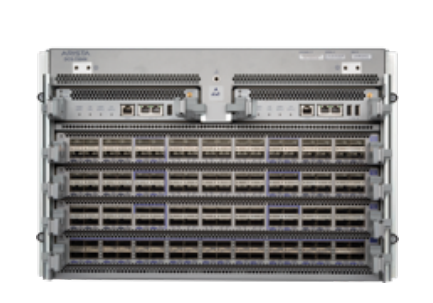

• Silver-colored arista dcs-7504n-ch 7500r2 4-slot modular chassis network switch with multiple ethernet ports and ventilation grilles
1 1

Arista

Arista DCS-7504R3-FM | 7500R3 Fabric Module for 7504N Chassis, Integrated Fan

DCS-7504R3-FM

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The DCS-7504R3-FM is a switch fabric module from the Arista 7500R3 Series, built for the DCS-7504N 4-slot modular chassis. It suits large-scale data centre spine and core deployments, layer 2 and layer 3 cloud designs, EVPN/VXLAN overlays, internet peering and data centre interconnect.

Each module has an integrated fan and provides the switching fabric for the 7500R3 line cards. Six modules are required to populate fabric slots 1 to 6 in the 7504N chassis, which delivers 76.8 Tbps and 16 Bpps of throughput. Fabric redundancy uses graceful degradation, and the fan modules are N+1 redundant with front-to-rear airflow. The module is 2.5 x 8.5 x 10.25 in and weighs 7.5 lbs (3.4 kg). It draws power from the chassis and has no separate power input.

It works with the DCS-7504N chassis, 7500R3 line cards such as the DCS-7500R3-24P-LC, 24D-LC and 36CQ-LC, and the DCS-7500-SUP2 and SUP2-D supervisors. Fabric modules are generation-specific, so 7500R and 7500E fabric modules are not interchangeable, and the 7508R3-FM and 7512R3-FM are for other chassis. No licence is listed for the fabric module itself.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated fan module in each fabric module
- Fabric module redundancy with graceful degradation
- N+1 fan module redundancy
- Front-to-rear airflow for optimised cooling
- Protects investment with a seamless upgrade path across 7500R3 fabric modules, line cards and supervisors
- Supports 7500R3 line cards up to 400G (OSFP / QSFP-DD)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Module type: Fabric module with integrated fan
- Chassis support: DCS-7504N
- Fabric modules per chassis: 6 (slots 1-6)
- Redundancy: Graceful degradation
- Typical (max) power: 130 W (230 W), measured at 25C with 50% load on all ports, excluding optics
- Dimensions (HxWxD): 2.5 x 8.5 x 10.25 in (6.4 x 21.6 x 26 cm)
- Weight: 7.5 lbs (3.4 kg)
- Airflow: Front-to-rear
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 10,000 ft (0 to 3,000 m)
- 7504N chassis throughput: 76.8 Tbps / 16 Bpps
- 7504N linecard slots: 4
- 7504N supervisor slots: 2
- 7504N power supply slots: 4

FAQs

Q: How many DCS-7504R3-FM modules does the 7504N chassis need?
A: Six. They populate fabric slots 1 to 6 in the DCS-7504N chassis.

Q: Does this fabric module need a licence?
A: No licence is listed for the fabric module itself. The chassis runs Arista EOS on the supervisor module.

Q: How is the fabric module powered?
A: It draws power from the chassis and has no separate power input. The 7504N uses up to four 3 kW PSUs (PWR-3KT-AC-RED, PWR-3KT-HV-RED or PWR-3K-DC-RED).

Q: What does it work with?
A: The DCS-7504N chassis, 7500R3 line cards (DCS-7500R3-24P-LC, 24D-LC, 36CQ-LC, 7500R3K-36CQ-LC and 7500R3K-48Y4D-LC) and DCS-7500-SUP2 or SUP2-D supervisors.

Q: Can I use 7500R or 7500E fabric modules, or the 7508R3-FM, instead?
A: No. Fabric modules are generation-specific, so 7500R and 7500E modules are not interchangeable, and the 7508R3-FM and 7512R3-FM are for other chassis.
