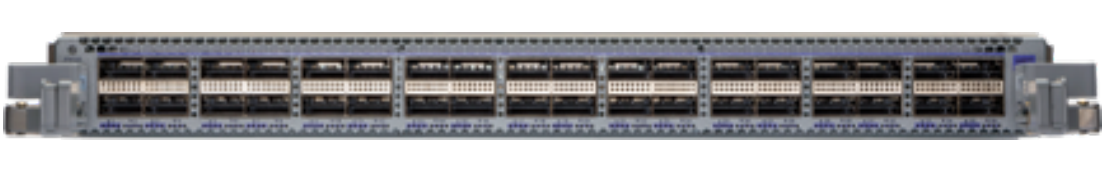

• Gray metal arista dcs-7500r3-36cq-lc server rack back with 36 black and silver 100g ports in rows line card module
1 1

Arista

Arista DCS-7500R3-36CQ-LC | 7500R3 36-Port 100G QSFP100 Line Card, 8GB Buffer

DCS-7500R3-36CQ-LC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7500R3 36-port 100G QSFP100 line card is a wirespeed module for the 7500R3 Series modular chassis. It suits large-scale data centre spine and leaf designs, cloud and EVPN/VXLAN overlay networks, internet peering, data centre interconnect and carrier edge or core transport.

Each card provides 36 QSFP100 ports with 3.6 Tbps of forwarding, 2 Bpps of wire-speed performance and 8 GB of deep packet buffer. Ports also run in 50G, 25G and 10G modes with suitable optics or breakout cables, up to 72 x 50G or 96 x 25G/10G. This is the standard routes (non-K) card, with 1450k IPv4 unicast routes in the L3 profile, extended by FlexRoute. Typical power draw is 442 W (576 W maximum), excluding optics.

The card installs in the DCS-7512N, DCS-7508N and DCS-7504N chassis alongside the 7500R3 fabric modules and Supervisor-2 (DCS-7500-SUP2), and runs Arista EOS from the supervisor. It is powered from the chassis power supplies (PWR-3KT-AC-RED, PWR-3KT-HV-RED or PWR-3K-DC-RED).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed 100G forwarding on all 36 ports with Virtual Output Queues and 8 GB deep packet buffer
- FlexRoute Engine holds the full internet routing table in hardware, with scale beyond 1.4M routes
- Accelerated sFlow with integrated hardware sFlow engines
- Algorithmic ACLs for scalable access control, policy-based forwarding and telemetry
- Inband Network Telemetry (INT) with IPFIX and sFlow export
- EVPN/VXLAN, MPLS, segment routing and carrier-grade VPN services
- Hot-swappable with front-to-rear airflow
- Runs single-binary Arista EOS with CloudVision, LANZ, ZTP and open APIs (JSON-RPC, NETCONF)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 36 x 100G QSFP100
- Maximum 10G ports: 96
- Maximum 25G ports: 96
- Maximum 40G ports: 36
- Maximum 50G ports: 72
- Maximum 100G ports: 36
- 400G: not supported
- Maximum total interfaces: 96
- Forwarding capacity: 3.6 Tbps
- Wire-speed performance: 2 Bpps
- Port buffer: 8 GB
- Accelerated sFlow: Yes
- Typical power: 442 W (576 W maximum), excluding optics
- Weight: 8.1 kg (17.75 lbs)
- Dimensions (WxHxD): 44.5 x 4.5 x 58.4 cm (17.5 x 1.75 x 23 in)
- Chassis support: DCS-7512N, DCS-7508N, DCS-7504N
- L3 profile ARP entries: 88k
- L3 profile MAC addresses: 224k
- L3 profile IPv4 unicast routes: 1450k (+1792k with FlexRoute)
- L3 profile IPv6 unicast routes: 433-483k
- L3 profile multicast routes: 112k
- TCAM ACL entries: 24k per chip
- ECMP: 512-way
- Operating temperature (system): 0 to 40 C
- Storage temperature (system): -40 to 70 C
- Relative humidity (system): 5 to 90%
- Operating altitude (system): 0 to 3,000 m

FAQs

Q: Which chassis does this line card fit?
A: It installs in the Arista DCS-7512N, DCS-7508N and DCS-7504N chassis, together with the 7500R3 fabric modules and Supervisor-2 (DCS-7500-SUP2).

Q: Does it need a separate licence?
A: No separate licence is specified for the line card hardware. It runs Arista EOS from the DCS-7500-SUP2 supervisor module.

Q: What power does it draw?
A: It draws 442 W typical and 576 W maximum, excluding optics. Power comes from the chassis power supplies, PWR-3KT-AC-RED, PWR-3KT-HV-RED or PWR-3K-DC-RED.

Q: Can the ports run at speeds below 100G?
A: Yes. The QSFP100 ports also support 40G, and 50G, 25G and 10G modes with suitable optics or breakout cables, for up to 96 interfaces per card.

Q: How does this differ from the DCS-7500R3K-36CQ-LC?
A: This DCS-7500R3-36CQ-LC is the standard routes (non-K) card with the same 36-port layout. The 7500R3K card is the large-route sibling.
