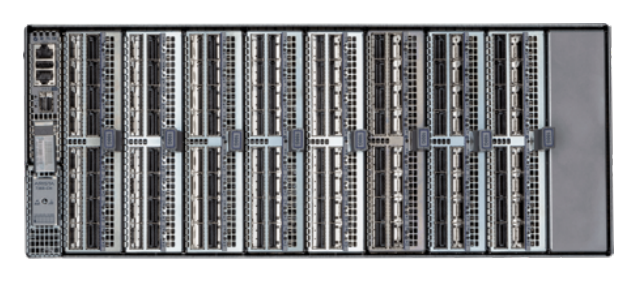

• A sleek silver arista dcs-7368x4-sc-f switch card with multiple vertical slots for network switches in a server rack
1 1

Arista

Arista DCS-7368X4-SC-R | 7368X4 12.8 Tbps Switch Card, Rear-to-Front Airflow

DCS-7368X4-SC-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7368X4 switch card is the central switching element of the 7368X4 modular data centre system. It carries a single 12.8 Tbps packet processor connected to all 8 I/O module slots in the DCS-7368-CH chassis, making it suited to hyperscale cloud, AI/ML, big data and I/O-intensive leaf or spine deployments that need high-density 100G and 400G with an upgrade path.

This -R variant includes fans and uses rear-to-front airflow. The card delivers up to 8 Bpps with latency from 700 ns and a 64 MB dynamic shared packet buffer, with 3.2 Tbps connected to each of the 8 I/O module slots. In the chassis it supports up to 128 x 100G or 32 x 400G ports through I/O modules. Typical power draw is 204 W, with a 364 W maximum, and it runs Arista EOS 4.22.0 or later.

It works only with the DCS-7368-CH chassis, alongside the DCS-7368-SUP or DCS-7368-SUP-D supervisor and I/O modules DCS-7368-16S, DCS-7368-16C, DCS-7368-4D, DCS-7368-4P and DCS-7358-16C. Airflow direction must match the other chassis components, so pair this rear-to-front card with rear-to-front power supplies and fans.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single 12.8 Tbps packet processor in a 4RU modular system
- Fully connected to 8 I/O module slots with no oversubscription
- Supports mixed I/O modules: 16x25G SFP28, 16x100G QSFP28, 4x400G QSFP-DD and 4x400G OSFP
- Rear-removable switch card, power supplies and fans, so interface modules and cabling are not disrupted
- Hot-swap I/O modules, N+N power supplies and N+1 fans in the chassis
- Runs Arista EOS with CloudVision, ZTP, LANZ, sFlow and DANZ mirroring
- 128-way ECMP, dynamic load balancing and advanced congestion management for AI/ML and NVMe workloads
- Wire-speed L2/L3 forwarding with MLAG, VRF, BGP, OSPF, IS-IS and PIM

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: DCS-7368X4-SC
- Product type: Switch card for the 7368 modular chassis
- Maximum throughput: 12.8 Tbps / 8 Bpps
- Packet buffer memory: 64 MB (dynamic buffer allocation)
- Latency: 700 ns
- Bandwidth per I/O module slot: 3.2 Tbps across 8 slots
- Chassis port capacity: up to 128 x 100G or 32 x 400G via I/O modules
- Airflow: rear to front, fans included
- Typical/max power draw: 204 W / 364 W
- Dimensions (HxWxD): 4.8 x 17.0 x 16.4 in (12.2 x 43.2 x 41.6 cm)
- Weight: 28.0 lbs (12.73 kg)
- Chassis support: DCS-7368-CH
- Minimum EOS: 4.22.0
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m (10,000 ft)
- Compliance: FCC Class A, ICES-003, EN 55032, EN 55035, EN 62368-1, IEC 62368-1
- Certifications: BSMI, CE, KCC, NRTL, RCM, UKCA, VCCI

FAQs

Q: Which chassis does this switch card fit?
A: It is designed only for the Arista DCS-7368-CH chassis and requires EOS 4.22.0 or later. It works with the DCS-7368-SUP or DCS-7368-SUP-D supervisor.

Q: Which I/O modules can it drive?
A: It supports DCS-7368-16S, DCS-7368-16C, DCS-7368-4D, DCS-7368-4P and DCS-7358-16C modules, with 3.2 Tbps connected to each of the 8 slots.

Q: What airflow does this -R variant use?
A: It uses rear-to-front airflow and includes fans. Match it with rear-to-front power supplies and fans, as the -F variant is front-to-rear. Reversible airflow applies to the 25G and 100G modules only, while 400G modules are front-to-rear only.

Q: What power does it need?
A: The card draws 204 W typical and 364 W maximum. The chassis takes up to 4 hot-swappable N+N power supplies, either PWR-1900AC-F/R at 1900 W AC or PWR-1900-DC-F/R at 1900 W DC.

Q: What optics and cables are supported?
A: Through the I/O modules it supports 10G, 25G, 40G, 100G, 200G and 400G optics and DACs, as listed in the Arista datasheet.
