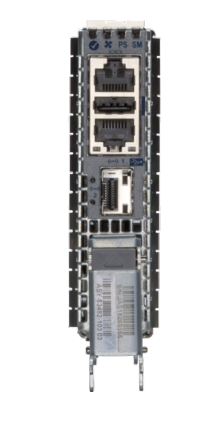

• Arista dcs-7368-sup supervisor module with quad-core cpu 32gb memory metallic chassis and multiple ethernet ports
1 1

Arista

Arista DCS-7368-SUP-D | 7368X4 Supervisor Module, Quad-Core CPU, 256GB SSD

DCS-7368-SUP-D

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7368X4 supervisor module is the control-plane card for the 7368X4 modular data centre switch chassis, DCS-7368-CH. It runs Arista EOS on a quad-core x86 CPU and provides the console and management ports for the chassis. It suits cloud and large-scale data centre networks that use the 4RU modular 7368X4 as a 100G, 200G or 400G leaf or spine switch.

This -D variant carries a 256 GB SSD, compared with 30 GB on the base DCS-7368-SUP, giving far more on-box space for logs, EOS images and extensions. It also includes 8 GB of flash storage, one 10/100/1000 RJ-45 management port, one 1G SFP management port (SX or LX), one RS-232 serial console port (RJ-45) and one USB port. Power draw from the chassis backplane is 30 W typical and 48 W maximum, and the module measures 4.0 x 1.0 x 17.0 in at 1.14 kg.

The module fits the single supervisor slot of the DCS-7368-CH chassis and works with the 7368X4-SC switch card and the DCS-7368-16S, -16C, -4D and -4P I/O modules. It requires EOS 4.22.0 or later. The supervisor itself needs no separate licence, as the chassis uses the EOS feature licence LIC-FIX-3.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Arista EOS, a single-binary, Linux-based image extensible with bash, python and C++
- Hosts the control plane and management functions for the 7368X4 chassis
- Hot-replaceable supervisor within the 7368X4 modular design
- Supports Zero Touch Provisioning, CloudVision, LANZ, DANZ mirroring and sFlow through EOS
- 256 GB SSD provides on-box storage for logs, images and extensions
- Dual management access through a copper RJ-45 port and a 1G SFP port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- CPU: Quad-core x86
- SSD storage: 256 GB (base DCS-7368-SUP has 30 GB)
- Flash storage: 8 GB
- 10/100/1000 management ports: 1 x RJ-45
- 1G SFP management port: 1 x (SX, LX)
- Serial port: 1 x RS-232 (RJ-45)
- USB ports: 1
- Power draw (typical/max): 30 W / 48 W
- Dimensions (H x W x D): 4.0 x 1.0 x 17.0 in (10.2 x 2.43 x 43.2 cm)
- Weight: 2.5 lbs (1.14 kg)
- Minimum EOS: 4.22.0
- Chassis support: DCS-7368-CH (1 supervisor slot)

FAQs

Q: Does the supervisor module need its own licence?
A: No. The supervisor has no separate licence. The 7368X4 chassis uses the EOS feature licence LIC-FIX-3.

Q: How does the DCS-7368-SUP-D differ from the DCS-7368-SUP?
A: The -D variant has a 256 GB SSD, while the base DCS-7368-SUP has 30 GB. This gives more room for logs, EOS images and extensions.

Q: Which chassis and modules does it work with?
A: It fits the supervisor slot of the DCS-7368-CH chassis and works with the 7368X4-SC switch card and the DCS-7368-16S, -16C, -4D and -4P I/O modules.

Q: What EOS version is required?
A: EOS 4.22.0 or later is required.

Q: How much power does it draw?
A: It draws 30 W typical and 48 W maximum from the chassis backplane. The chassis takes up to 4 AC or DC power supplies in N+N redundancy.
