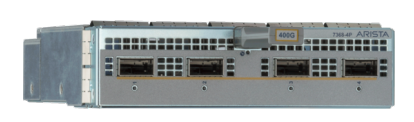

• Gray metal arista dcs-7368-4d 4-port 400g qsfp-dd server module with multiple ports and 4096 label on top
1 1

Arista

Arista DCS-7368-4D | 7368X4 4-Port 400G QSFP-DD Switch Module

DCS-7368-4D

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7368X4 4-port 400G QSFP-DD switch module is a line card for the modular 7368X4 data centre switch, and is also listed for 7358X and 7289R Series chassis. It suits hyperscale cloud, AI/ML and I/O-intensive spine and leaf deployments that need high-density 100G and 400G connectivity.

The module provides 4 x QSFP-DD ports running up to 4 x 400GbE. It also supports 4x100G and 2x200G modes, and can use existing 100G optics and cables alongside QSFP-DD 400G optics and cables. Power draw is 72 W typical and 140 W maximum with 4.5 W optics, supplied from the chassis. A 7368X4 chassis has 8 line card slots, so it scales to as many as 32 x 400G ports or 128 x 100G ports.

The module requires a compatible chassis, supervisor and switch card running EOS 4.22.0 or later. Related modules for the same platform include the DCS-7368-4P (4 x OSFP 400G), DCS-7368-16C (16 x QSFP28) and DCS-7368-16S (16 x SFP28).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 400G connectivity using QSFP-DD optics and cables
- Supports 4x100G and 2x200G modes
- Can use existing 100G optics and cables
- Up to 32 x 400G or 128 x 100G per 7368X4 chassis
- Wire-speed Layer 2 and Layer 3 forwarding
- Latency from 700 ns for 400G in cut-through mode
- Mix-and-match IO modules with field-removable active components
- Cluster Load Balancing (CLB) and 128-way ECMP on the platform

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 4 x QSFP-DD
- Maximum 400GbE ports: 4
- Breakout modes: 4x100G and 2x200G
- Power draw: 72 W typical (excluding optics), 140 W maximum (with 4.5 W optics)
- Size (H x W x D): 6.7 in x 1.7 in x 9.5 in (17 x 4.4 x 24.2 cm)
- Minimum EOS: 4.22.0
- Chassis compatibility: 7358X, 7368X and 7289R Series
- 7368X4 chassis line card slots: 8
- 7368X4 chassis supervisor slots: 1
- 7368X4 chassis rack space: 4RU
- 7368X4 chassis system capacity: up to 25.6 Tbps, up to 8 billion packets per second
- 7368X4 chassis latency: from 700 ns for 400G
- 7368X4 chassis packet buffer: 64 MB shared with dynamic buffer allocation
- 7368X4 chassis operating temperature: 0 to 40 C
- 7368X4 chassis storage temperature: -40 to 70 C
- 7368X4 chassis operating altitude: 0 to 3,000 m
- 7368X4 chassis relative humidity: 5 to 90%

FAQs

Q: Which chassis does the DCS-7368-4D work in?
A: It is listed for the Arista 7368X4 chassis and also for 7358X and 7289R Series chassis. It needs a compatible chassis, supervisor and switch card running EOS 4.22.0 or later.

Q: Can it use 100G optics and cables?
A: Yes. The module takes QSFP-DD optics and cables for 400G, and existing 100G optics and cables can also be used. It supports 4x100G and 2x200G modes.

Q: How much power does the module draw?
A: It draws 72 W typical and up to 140 W with 4.5 W optics, powered from the chassis. The 7368X4 chassis uses PWR-1900 AC or DC power supplies in an N+N redundant arrangement.

Q: What licensing does it need?
A: The module itself needs a compatible chassis, supervisor and switch card running EOS 4.22.0 or later. The platform uses EOS feature licences, and an Enhanced L3 licence is available for BGP, OSPF, ISIS, PIM and NAT.

Q: How does it differ from the DCS-7368-4P?
A: The DCS-7368-4D provides 4 x 400G QSFP-DD ports, while the DCS-7368-4P provides 4 x 400G OSFP ports. Choose the one that matches your optics and cabling.
