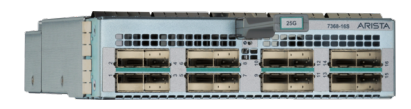

• Gray metal arista dcs-7368-16s 16-port 25g sfp28 network switch back with arista 7098-16a label
1 1

Arista

Arista DCS-7368-16S | 7368X4 16-Port 25G SFP28 Line Card Module, 36W

DCS-7368-16S

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 16-port SFP28 interface module (line card) for the Arista 7368X4 Series modular data centre switch. It is built for cloud, hyper-scale and data centre networks that need to add 25G and 10G server-facing connectivity to the DCS-7368-CH chassis, alongside 100G, 200G and 400G modules.

Each of the 16 SFP28 ports runs at 25GbE or 10GbE, giving up to 16 x 25GbE or 16 x 10GbE per module. The module connects directly to the switch card with no oversubscription. It draws 36 W typical, excluding optics, and 88 W maximum when measured with 2.5W optics on all ports. It requires Arista EOS 4.25.0 or later, and the module itself needs no licence. EOS feature licences from the LIC-FIX-3 family apply at the chassis level.

It supports 25GBASE-CR, AOC, SR, MR-XSR and LR optics, plus 10GbE SFP+ optics and cables including CR, AOC, SR, LR, ER, ZR and DWDM. It fits the DCS-7368-CH chassis only, which provides 8 interface module slots.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Mix-and-match I/O modules in the 7368X4 chassis, which has 8 interface module slots
- Direct connection to the switch card with no oversubscription
- Field-removable and hot-serviceable modular design
- Chassis delivers 12.8 Tbps system forwarding and up to 8 Bpps from a single packet processor
- Chassis latency as low as 700 ns with a 64 MB shared packet buffer
- Runs Arista EOS with 128-way ECMP and advanced congestion management
- Supports 25GBASE-CR, AOC, SR, MR-XSR and LR optics and 10GbE SFP+ optics and cables

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 16 x SFP28
- Port speeds: 25GbE or 10GbE on all ports
- Max 25GbE ports: 16
- Max 10GbE ports: 16
- Typical power draw: 36 W (excluding optics)
- Maximum power draw: 88 W (with 2.5W optics on all ports)
- Size (H x W x D): 17 x 4.4 x 24.2 cm (6.7 x 1.7 x 9.5 in)
- Weight: 1.16 kg (2.56 lbs)
- Chassis support: DCS-7368-CH
- Airflow: Front to rear / rear to front
- Minimum EOS: 4.25.0
- Operating temperature (system): 0 to 40 C
- Storage temperature (system): -40 to 70 C
- Relative humidity (system): 5 to 95%
- Operating altitude (system): 0 to 3,000 m
- Certifications (system): BSMI, CE, KCC, NRTL, RCM, UKCA, VCCI

FAQs

Q: Does this module need a licence?
A: No, the module itself needs no licence. The 7368X4 chassis uses EOS feature licences from the LIC-FIX-3 family, for example LIC-FIX-3-E Enhanced L3 for BGP, OSPF, ISIS, PIM and NAT.

Q: Which chassis does it fit?
A: It fits the Arista DCS-7368-CH chassis from the 7368X4 Series only. The chassis is 4RU with 8 line card slots.

Q: How much power does the module draw?
A: It draws 36 W typical, excluding optics, and 88 W maximum when measured with 2.5W optics on all ports. The chassis supplies power from up to 4 hot-swappable N+N redundant PWR-1900AC-F/R or PWR-1900-DC-F/R power supplies.

Q: Which optics and cables does it support?
A: It supports 25GbE SFP28 and 10GbE SFP+ optics and cables. For 25G these include 25GBASE-CR (1-5 m), AOC (3-30 m), SR (70 m), MR-XSR and LR/MR-LR (10 km). For 10G these include CR, AOC, SRL, SR, LRL, LR, ER, ZR and DWDM. Check the EOS release notes for support.

Q: What EOS version is required?
A: This module requires Arista EOS 4.25.0 or later.
