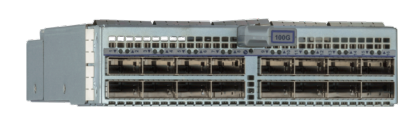

• Gray metal arista dcs-7368-16c 16-port 100g qsfp28 line card with mds front panel and ventilation slots
1 1

Arista

Arista DCS-7368-16C | 7368X4 16-Port 100G QSFP28 Line Card, 8x 200G

DCS-7368-16C

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This line card is a hot-swappable 16-port 100GbE QSFP28 interface module for the Arista 7368X4 modular data centre switch chassis. It suits leaf or spine deployments in hyper-scale cloud, machine-learning and AI clusters and big-data data centre networks, adding 100G and 200G density to the modular 7368X4 platform.

The module provides 16 QSFP28 ports, with up to 8 ports running in 200G mode on alternate ports. All 16 ports can also operate at 100GbE, 25GbE or 10GbE. Each I/O module connects directly to the switch card with no oversubscription, and the chassis offers 3.2 Tbps of system capacity per line card slot. The card draws 83 W typical and 140 W maximum, excluding optics.

It installs in the DCS-7368-CH chassis and requires EOS 4.22.0 or later, working with a DCS-7368-SUP or SUP-D supervisor and the DCS-7368X4-SC switch card. The 100G QSFP ports support optics and cables including 100GBASE-SR4, LR4, CWDM4, PSM4, AOC and CR4, and 40G QSFP+ optics and cables are also supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable interface module for the 7368X4 chassis
- Mix and match I/O modules within the same chassis
- Direct connection to the switch card with no oversubscription
- Supports 10G, 25G, 100G and 200G speeds using industry-standard optics and cables
- Runs Arista EOS, with CloudVision, ZTP, LANZ and DANZ support at the system level
- Front-to-rear and rear-to-front cooling options at the system level
- Typical power of under 10W per 100G port at the system level

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: DCS-7368-16C
- Ports: 16 x QSFP28
- Maximum 200GbE ports: 8 (alternate ports)
- Maximum 100GbE ports: 16
- Maximum 25GbE ports: 16
- Maximum 10GbE ports: 16
- 400GbE ports: not supported
- Power draw: 83 W typical, 140 W maximum (excluding optics)
- Dimensions (HxWxD): 17 x 4.4 x 24.2 cm (6.7 x 1.7 x 9.5 in)
- Weight: 1.41 kg (3.1 lbs)
- Compatible chassis: DCS-7368-CH
- Minimum EOS: 4.22.0
- Capacity per line card slot: 3.2 Tbps
- Airflow options (system): front to rear or rear to front
- Operating temperature (system): 0 to 40 C
- Storage temperature (system): -40 to 70 C
- Relative humidity (system): 5 to 95%
- Operating altitude (system): 0 to 3,000 m
- Certifications (system): BSMI, CE, KCC, NRTL, RCM, UKCA, VCCI

FAQs

Q: Does this line card need its own licence?
A: No separate licence is required for the line card itself. The 7368X4 chassis uses the Arista EOS Group 3 fixed-switch licence family (LIC-FIX-3), with optional licences such as LIC-FIX-3-E for Enhanced L3.

Q: Which chassis and software does it work with?
A: It installs in the DCS-7368-CH chassis, which has 8 line card slots, and requires EOS 4.22.0 or later. It works with a DCS-7368-SUP or SUP-D supervisor and the DCS-7368X4-SC switch card.

Q: What power does the line card draw?
A: It draws 83 W typical and 140 W maximum, excluding optics. The chassis supplies power through up to four hot-swappable N+N PSUs rated at 1900 W each (PWR-1900AC-F/R or PWR-1900-DC-F/R).

Q: Which optics and speeds do the QSFP28 ports support?
A: The 100G ports support 100GBASE-SR4, XSR4, SWDM4, SRBD, LR, LR4, LRL4, CWDM4, XCWDM4, FR, DR, PSM4, ERL4, AOC and CR4. 40G QSFP+ optics and cables are also supported, and the ports can run at 25G or 10G.

Q: How many 200G ports can it run?
A: Up to 8 ports can run in 200G mode, on alternate ports. All 16 ports can alternatively run at 100GbE, and 400GbE is not supported.
