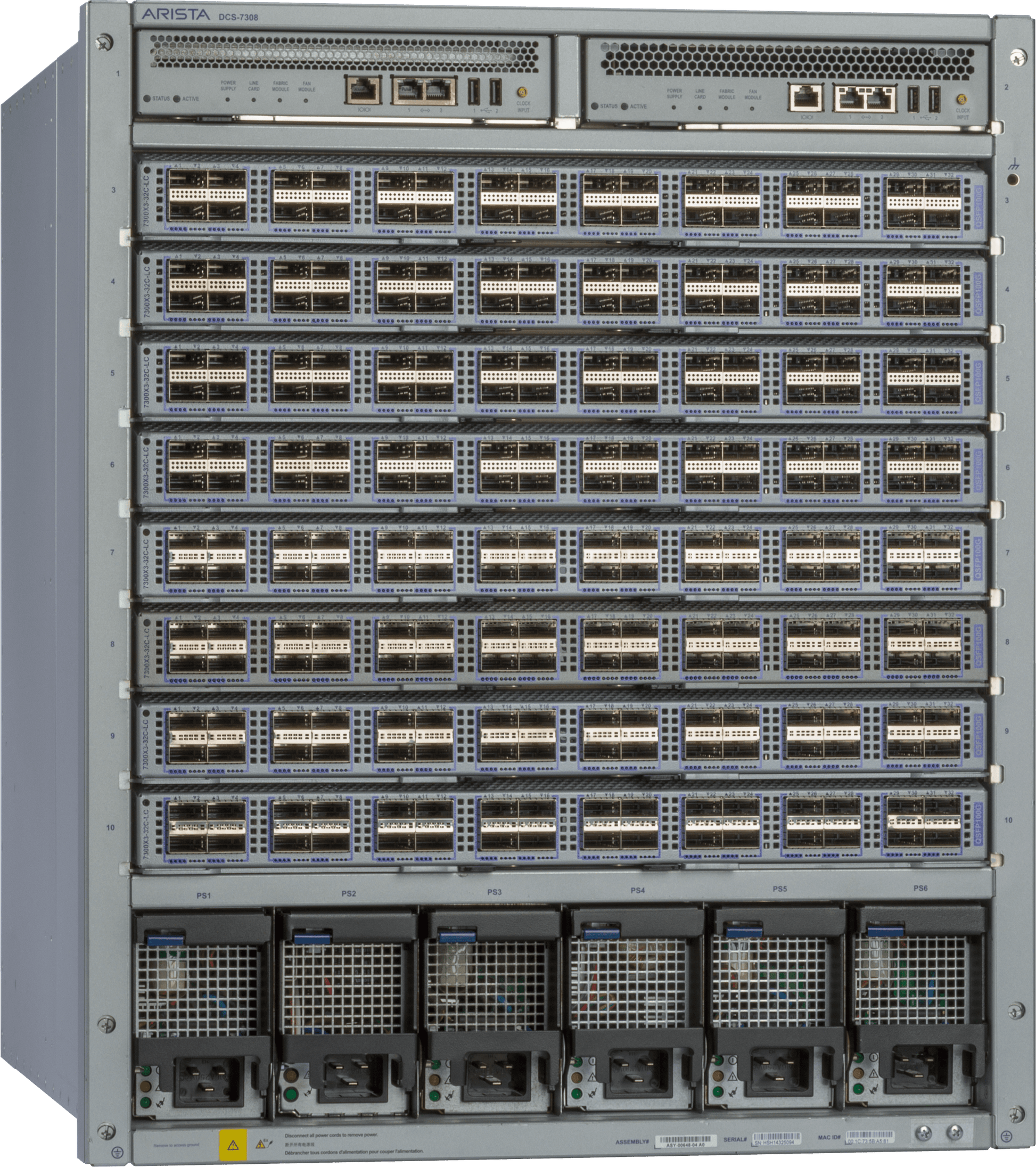

• Gray metal arista dcs-7308x3-fm-f fabric module with multiple rows of ports and power supply units front-to-rear airflow
1 1

Arista

Arista DCS-7308X3-FM-F | 7300X3 Fabric Module for 7308, Front-to-Rear Airflow

DCS-7308X3-FM-F

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Arista 7300X3 fabric module is a hot-swappable replacement or spare for the 7308 8-slot modular chassis. It suits data centre leaf/spine and Spline collapsed-tier deployments, as well as campus roles, where the chassis needs to keep every line card connected in a non-blocking fabric.

The module has integrated hot-swap fan modules and provides front-to-rear airflow. It delivers a full 6.4 Tbps of forwarding to each line card and is required in fabric slots 1-4 of the chassis. Fabric modules run active-active with graceful degradation, and the 7308 chassis supports over 50 Tbps of total switching capacity. Typical power draw is 380W with a 577W maximum, and the module weighs 17.3 lbs (7.8 kg).

It is intended for the Arista DCS-7308 chassis, including the DCS-7308X3 bundles, and works with the 7300X3 line cards DCS-7300X3-32C-LC, DCS-7300X3-48YC4-LC and DCS-7300X3-48TC4-LC, plus the DCS-7300-SUP and DCS-7300-SUP2-D supervisors. The 4-slot DCS-7304 chassis uses the separate DCS-7304X3-FM-F.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Interconnects all line cards in a non-blocking architecture irrespective of traffic pattern
- Provides a full 6.4 Tbps of forwarding to each line card module
- Always active-active for high availability
- Hot-swappable with graceful performance degradation
- Each module accommodates individual hot-swap fan modules
- Fan modules provide redundant front-to-rear cooling and can be replaced independently without system impact
- Supports over 50 Tbps of total system switching capacity in the 7308 chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Module type: Fabric module, DCS-7308X3-FM
- Chassis: DCS-7308 (8-slot, 13RU)
- Required fabric slots: 1-4
- Fabric module slots per 7308 chassis: 4
- Airflow: Front-to-rear
- Cooling: Integrated hot-swap fan modules
- Fan modules per 7308 chassis: 16
- Forwarding per line card: up to 6.4 Tbps
- Redundancy: Graceful degradation
- Typical power (maximum): 380W (577W)
- Dimensions (H x W x D): 17.3 x 3.7 x 11.8 in (43.9 x 9.4 x 30 cm)
- Weight: 17.3 lbs (7.8 kg)
- Chassis maximum throughput: 51.2 Tbps / 32 Bpps
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 10,000 ft (0-3,000 m)

FAQs

Q: How many fabric modules does the 7308 chassis need?
A: Four. Fabric modules are required in slots 1-4 of the DCS-7308 chassis, and they operate active-active.

Q: Does this fabric module need a licence?
A: No, the module itself needs no licence. Optional modular-switch licences such as LIC-MOD-2-E are ordered separately at chassis level.

Q: Which line cards and supervisors does it work with?
A: It works with the 7300X3 line cards DCS-7300X3-32C-LC, DCS-7300X3-48YC4-LC and DCS-7300X3-48TC4-LC, and the DCS-7300-SUP and DCS-7300-SUP2-D supervisors.

Q: Can I use it in the 4-slot DCS-7304 chassis?
A: No. This module is for the 8-slot 7308 chassis. The 4-slot DCS-7304 uses the separate DCS-7304X3-FM-F.

Q: How much power does the module draw?
A: Typical power is 380W with a maximum of 577W. The 7308 chassis is powered by up to six 3000W power supplies.

Q: What airflow direction does this version use?
A: It provides front-to-rear airflow through its integrated fan modules.
