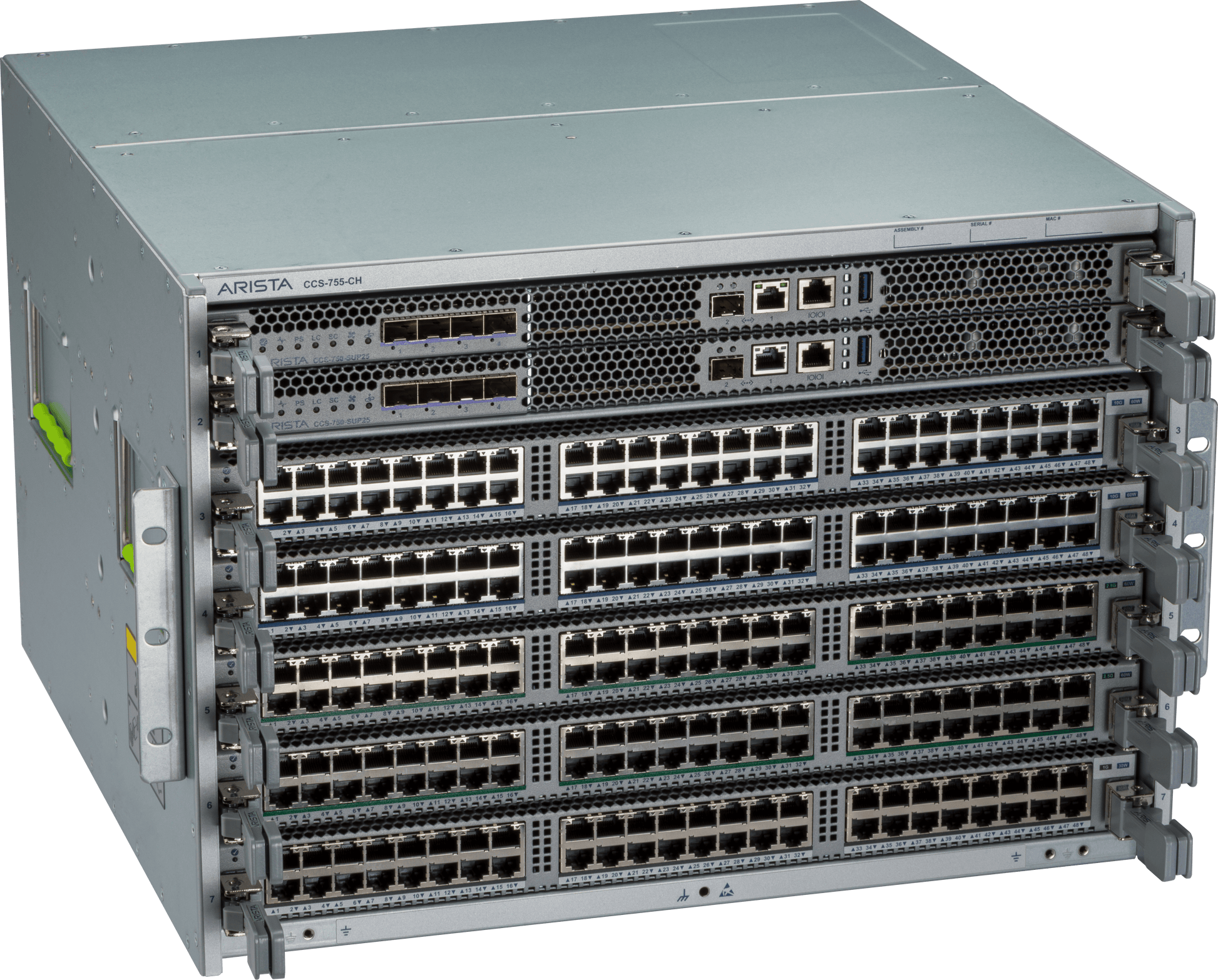

Arista CCS-755-X3-SC | 750X Switch Card Module, CCS-755 5-Slot, 1.15Tbps
SKU:CCS-755-X3-SC
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The CCS-755-X3-SC is a switch card (fabric module) from the Arista 750X Series Cognitive Campus modular range. It is built for the 5-slot CCS-755 chassis and provides the centralised switching fabric that links the supervisors and linecards. It suits core or aggregation roles in modular campus networks, including high-density PoE deployments for IoT and Wi-Fi 6.
This card delivers 1.15Tbps of throughput and 850Mpps forwarding. Switch cards run in a 1+1 active/standby arrangement and are hot-swappable. Typical power draw is 82W, with a maximum of 160W. It measures 27.9 x 10.3 x 21.9 cm and weighs 4.2 kg. The base EOS feature set is bundled with the system, so the card itself needs no separate licence. Optional feature licences fall under group LIC-MOD-G.
The card works only with the CCS-755 5-slot chassis (the CCS-758-X3-SC is the 8-slot equivalent). It pairs with the CCS-750-SUP100 and CCS-750-SUP25 supervisors and the 750X linecards, and requires EOS 4.25.1 or later.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dedicated switch card, separate from the supervisors and linecards
- Resilient centralised switching fabric with independent control plane and dataplane
- Hot-swap and insert of all modules
- Dual supervisor operation with all ports active
- Runs Arista EOS from a single binary image
- Smart System Upgrade (SSU) for hitless software upgrades
- Supports CloudVision management, including FlowTracker telemetry
- Built-in 802.1AE MACsec on all ports (MACsec is a separately licensed feature)
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: CCS-755-X3-SC
- Module type: Switch card (fabric module)
- Chassis: CCS-755 (5-slot) only
- Redundancy: 1+1 Active / Standby
- Throughput: 1.15Tbps
- Forwarding rate: 850Mpps
- Typical power: 82W
- Maximum power: 160W
- Dimensions (WxHxD): 11 x 4.06 x 8.64 in (27.9 x 10.3 x 21.9 cm)
- Weight: 9.2 lbs (4.2 kg)
- Minimum EOS: 4.25.1
- EOS licence group: LIC-MOD-G
- CloudVision licence group: MOD-G
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m (10,000 ft)
FAQs
Q: Which chassis does the CCS-755-X3-SC fit?
A: It is designed for the 5-slot CCS-755 chassis only. The 8-slot CCS-758 chassis uses the CCS-758-X3-SC.
Q: Does the switch card need its own licence?
A: No. The base EOS feature set is bundled with the system. Optional feature licences, such as FLX-Lite, use group LIC-MOD-G, and CloudVision subscriptions use group MOD-G.
Q: What does it work with?
A: It works with the CCS-750-SUP100 and CCS-750-SUP25 supervisors and the 750X linecards, including 48-port 1G, mGig, 10G-T and SFP+ models. It requires EOS 4.25.1 or later.
Q: How much power does the switch card draw?
A: Typical draw is 82W, with a maximum of 160W per card.
Q: Can the switch card be replaced while the chassis is running?
A: Yes. The switch card is hot-swappable, and the 1+1 active/standby arrangement provides fabric redundancy.
