Arista CCS-750XPM-48NH-LC | 750X 48-Port 5G Multi-Gig Line Card, 90W PoE
SKU:CCS-750XPM-48NH-LC
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

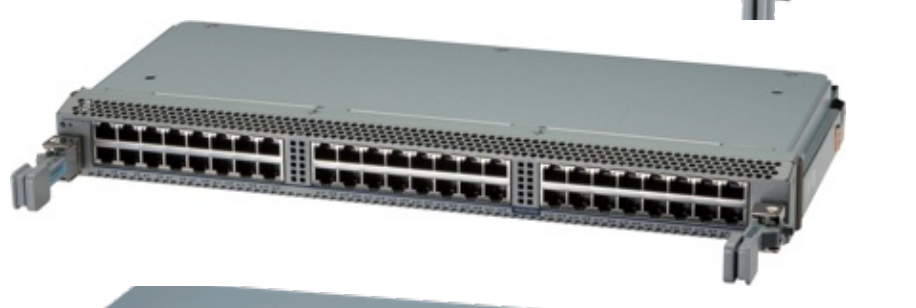

This line card is built for the Arista Cognitive Campus 750X modular chassis. It is aimed at high-density campus access and edge deployments that power Wi-Fi 6/6E access points, IoT devices and other 802.3bt PoE devices, with a line card that slots into the chassis and is hot-swappable.
All 48 RJ45 ports are 5G-T and support 100M, 1G, 2.5G and 5G speeds. Every port delivers up to 90W of 802.3bt PoE, and MACsec encryption is available on all ports. Typical power draw is 97W, with a maximum of 104W, excluding PoE. The card is centralised on a switch-card architecture, so all traffic is handled by the switch cards with fully shared packet buffers.
The card fits the CCS-758-CH 8-slot and CCS-755-CH 5-slot chassis and requires a switch card (CCS-758-X3-SC or CCS-755-X3-SC) and a supervisor (CCS-750-SUP100 or CCS-750-SUP25), running EOS 4.35.1 or later. The line card needs no licence of its own, though the 750X system uses optional EOS licences and MACsec is a separately licensed feature.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Up to 90W 802.3bt PoE on all ports with cognitive power management
- Dynamic PoE, Concurrent PoE and Continuous PoE, with power maintained during reload
- MACsec encryption on all access ports
- Hot-swappable line card for the 750X modular chassis
- Centralised switch-card architecture with fully shared packet buffers
- Runs Arista EOS with CloudVision management, Zero Touch Provisioning, FlowTracker and sFlow/IPFIX
- Supports VXLAN/EVPN segmentation and Smart System Upgrade (SSU) for hitless upgrades
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x 5G-T RJ45
- Speeds supported: 100M, 1G, 2.5G, 5G
- Max 1G ports: 48
- Max 2.5G ports: 48
- Max 5G ports: 48
- Max 10G ports: 0
- PoE: 90W (802.3bt) on all ports
- Security: MACsec (256-bit) on all ports
- Typical power (max, excl. PoE): 97W (104W)
- Weight: 6.8 lbs (3.08 kg)
- Dimensions (H x W x D): 1.63 x 16.57 x 10.5 in (4.14 x 42.1 x 26.68 cm)
- Minimum EOS: 4.35.1
- Chassis support: CCS-758-CH and CCS-755-CH
- Operating temperature (750X system): 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m (10,000 ft)
FAQs
Q: Does this line card need a licence?
A: The line card needs no licence of its own. The 750X system runs EOS and uses optional licences such as LIC-MOD-G-FLX-L, LIC-MOD-G-E and LIC-MOD-G-V2. MACsec is a separately licensed feature (LIC-MOD-G-MACSEC).
Q: Which chassis does it fit?
A: It fits only the CCS-758-CH 8-slot and CCS-755-CH 5-slot chassis. It also needs a switch card (CCS-758-X3-SC or CCS-755-X3-SC), a supervisor (CCS-750-SUP100 or CCS-750-SUP25) and EOS 4.35.1 or later.
Q: What power does the chassis need for PoE?
A: The chassis uses PWR-3351-AC-RED 3300W AC PoE power supplies, which deliver 3300W at 200-240VAC or 1400W at 100-120VAC and are hot-swappable. Available PoE capacity depends on how many power supplies are installed.
Q: Can I use optics on this line card?
A: No, the line card has RJ45 ports only. Optics are supported on the supervisor uplink ports, which take 40/100G QSFP or 10/25G SFP.
Q: What speeds do the ports support?
A: Each of the 48 RJ45 ports supports 100M, 1G, 2.5G and 5G. There are no 10G ports on this card.
