Arista

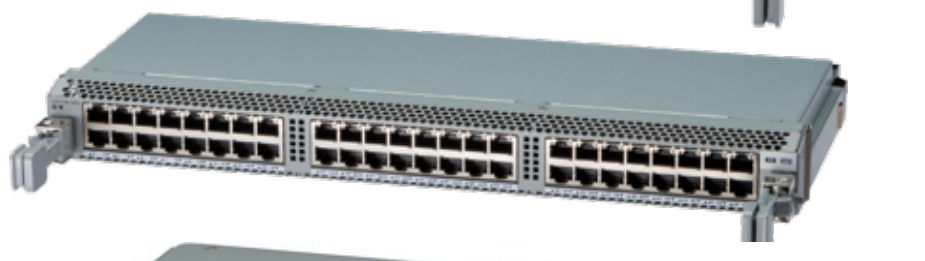

Arista CCS-750X-48ZXP-LC | 750X 48-Port Multi-Gig 10G-T PoE Line Card, 60W PoE

SKU:CCS-750X-48ZXP-LC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This line card is a hot-swappable 48-port multi-gigabit PoE module for the Arista 750X Series campus modular switches. It suits high-density wiring-closet and access deployments that power Wi-Fi 6 access points, IoT devices, cameras and IP phones over multi-gigabit PoE.

All 48 RJ45 ports run at 1G, 2.5G, 5G or 10G, with 100M also available on ports 5-16, 21-32 and 37-48. Every port supplies up to 60W of PoE. The card draws a typical 148W (160W maximum) excluding PoE, and the architecture is non-blocking with the centralised switch card. Built-in 802.1AE MACsec is available on all ports.

The card is designed for the CCS-758-CH 8-slot and CCS-755-CH 5-slot chassis. It requires a switch card (CCS-758-X3-SC or CCS-755-X3-SC) and a supervisor (CCS-750-SUP100 or CCS-750-SUP25), running EOS 4.26.0 or later. The 750X system uses the LIC-MOD-G EOS licence group.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Built-in 802.1AE MACsec on all ports
- Hot-swap and insert of all modules
- Dynamic PoE management and Continuous PoE, with PoE maintained during reload
- Concurrent PoE power sharing across the system
- Manageable by CloudVision with FlowTracker telemetry
- Runs Arista EOS with a single binary image, ZTP, LANZ and sFlow/IPFIX
- Supports 802.1x multi-host authentication, MAC-based authentication, IPv4/v6 VRFs, VXLAN and EVPN
- Non-blocking architecture with the centralised switch card

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10G-T RJ45
- Speeds supported: 100M (ports 5-16, 21-32 and 37-48 only), 1G, 2.5G, 5G, 10G
- Maximum 1G ports: 48
- Maximum 2.5G ports: 48
- Maximum 5G ports: 48
- Maximum 10G ports: 48
- PoE: 60W on all ports
- Typical power (excluding PoE): 148W (160W maximum)
- Weight: 3.4 kg (7.48 lbs)
- Dimensions (HxWxD): 4.14 x 42.8 x 19.7 cm (1.63 x 16.85 x 7.76 in)
- Minimum EOS: 4.26.0
- Chassis support: CCS-758-CH and CCS-755-CH
- MACsec: 802.1AE on all ports
- EOS licence group (system): LIC-MOD-G
- CloudVision licence group (system): MOD-G

FAQs

Q: Which chassis does this line card fit?
A: It fits the CCS-758-CH 8-slot and CCS-755-CH 5-slot chassis only. It also needs a switch card (CCS-758-X3-SC or CCS-755-X3-SC) and a supervisor (CCS-750-SUP100 or CCS-750-SUP25).

Q: What EOS version does it require?
A: The minimum supported release is EOS 4.26.0.

Q: What PoE does each port provide?
A: All 48 ports supply up to 60W of PoE. The card itself draws a typical 148W (160W maximum) excluding PoE.

Q: What licensing applies to the system?
A: The 750X modular system uses the EOS licence group LIC-MOD-G and the CloudVision group MOD-G. Options include LIC-MOD-G-FLX-L, LIC-MOD-G-E, LIC-MOD-G-V2 and LIC-MOD-G-MACSEC.

Q: Can it be swapped while the chassis is running?
A: Yes. All modules in the 750X system are hot-swappable, and Continuous PoE keeps power flowing to connected devices during a reload.
