Arista

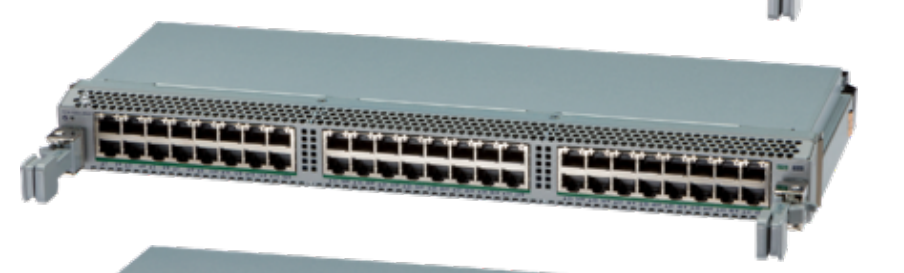

Arista CCS-750X-48ZP-LC | 750X 48-Port mGig PoE Line Card, 60W, 100Mb/1G/2.5G

SKU:CCS-750X-48ZP-LC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 48-port multi-gigabit line card is built for the Arista 750X Series modular campus switches, specifically the 5-slot CCS-755-CH and 8-slot CCS-758-CH chassis. It suits high-density campus access and aggregation, supplying PoE to Wi-Fi 6 access points, IoT devices and VoIP phones, and can be used in L2/L3 designs with MLAG, EVPN-VXLAN segmentation and MACsec.

All 48 RJ45 ports support 100Mb, 1G and 2.5G speeds, with up to 60W of 802.3bt PoE on every port. The card draws 83W typical and 87W maximum excluding PoE, and PoE capacity depends on the chassis configuration and number of power supplies fitted. MACsec (802.1AE) is built in on all ports. The card is hot-swappable and runs Arista EOS 4.25.1 or later, with optional software licences available for routing, security and encryption features.

It requires a CCS-755-X3-SC or CCS-758-X3-SC switch card and a CCS-750-SUP100 or CCS-750-SUP25 supervisor module. The line card has copper RJ45 ports only, so uplink optics are fitted to the supervisor module.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Built-in 802.1AE MACsec on all ports
- 802.1x multi-host and MAC-based authentication
- Cognitive power management with dynamic power management and Continuous PoE
- Hot-swap and insert of all modules
- CloudVision management with Secure Zero Touch Provisioning (ZTP)
- LANZ microburst detection, sFlow, IPFIX and FlowTracker telemetry
- Smart System Upgrade (SSU) for hitless software upgrade and patching
- IPv4/v6 VRFs, VXLAN and EVPN Type 2 and Type 5 segmentation
- Runs Arista EOS with Linux shell access and extensibility via Python, bash, C++, Go and OpenConfig

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x mGig RJ45
- Speeds supported: 100Mb, 1G, 2.5G
- Maximum 1G ports: 48
- Maximum 2.5G ports: 48
- PoE: 60W on all ports (802.3bt)
- Encryption: MACsec (802.1AE) on all ports
- Typical power (max) excluding PoE: 83W (87W)
- Chassis support: CCS-755-CH and CCS-758-CH
- Minimum EOS: 4.25.1
- Weight: 2.5 kg
- Dimensions (HxWxD): 4.14 x 42.8 x 19.7 cm
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m
- Certifications: BSMI, CE, KCC, NRTL, RCM, UKCA, VCCI
- EMC: FCC Class A, ICES-003, EN 55032, EN IEC 61000-3-2:2019, EN 61000-3-3
- Safety: EN 62368-1:2014 + A11:2017, IEC-62368-1:2014

FAQs

Q: Which chassis does this line card fit?
A: It fits the CCS-755-CH 5-slot and CCS-758-CH 8-slot chassis. The chassis also needs a CCS-755-X3-SC or CCS-758-X3-SC switch card and a CCS-750-SUP100 or CCS-750-SUP25 supervisor module.

Q: How much PoE does each port provide?
A: Each of the 48 ports provides up to 60W of PoE. The total PoE available depends on the chassis configuration and the number of CCS PWR-3351-AC-RED power supplies installed.

Q: Which software and licences does it need?
A: It runs Arista EOS 4.25.1 or later. Optional licences are available for modular 1G/mG switches, including LIC-MOD-G-FLX-L, LIC-MOD-G-E, LIC-MOD-G-V2 and LIC-MOD-G-MACSEC for MACsec encryption.

Q: Does it have fibre uplink ports?
A: No. The card has 48 copper RJ45 multi-gigabit ports only. Uplink optics are installed in the QSFP100 or SFP25 ports on the supervisor module.

Q: What happens to unused chassis slots?
A: Empty slots can be covered with the CCS-750-LCVR blank slot cover.
