Arista

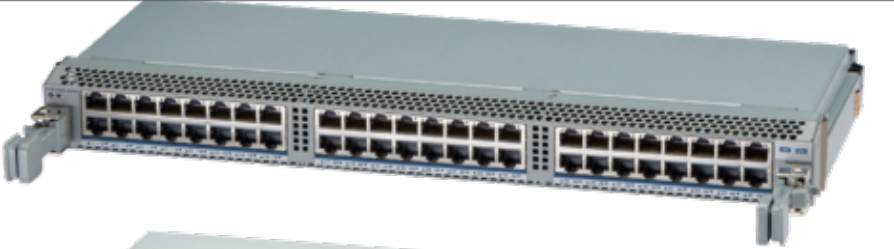

Arista CCS-750X-48TP-LC | 750X 48-Port Gigabit PoE+ Line Card, 30W per Port

SKU:CCS-750X-48TP-LC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 750X 48-port Gigabit PoE+ line card is a modular access and aggregation blade for the 750X Series Cognitive Campus chassis. It suits dense campus deployments that need to power IP phones, Wi-Fi access points, cameras and IoT endpoints from a single modular platform, with a fully populated chassis reaching up to 384 PoE ports in 10RU or 240 ports in 7RU.

The card provides 48 x 10/100/1000BASE-T RJ45 ports, each delivering up to 30W PoE on every port. MACsec (802.1AE) is built in on all ports. It draws 42W typical (43W maximum) excluding PoE. The 750X modular platform sits in the LIC-MOD-G EOS licence group and the MOD-G CloudVision licence group, with optional FLX-Lite, Enhanced and EOS Extensions licence tiers available at the platform level.

It fits the CCS-758-CH 8-slot and CCS-755-CH 5-slot chassis and requires a CCS-758-X3-SC or CCS-755-X3-SC switch card and a CCS-750-SUP100 or CCS-750-SUP25 supervisor. Minimum EOS release is 4.25.1.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Built-in 802.1AE MACsec on all ports
- Hot-swap insertion and removal of line cards
- Dynamic power management and Continuous PoE
- Cognitive PoE power management
- Secure Zero Touch Provisioning (ZTP)
- 802.1x multi-host and authentication, plus MAC-based authentication
- Managed via Arista CloudVision and runs Arista EOS
- LANZ microburst detection, sFlow, IPFIX and FlowTracker telemetry

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T RJ45
- Speeds supported: 10M, 100M, 1G
- PoE: 30W on all ports
- Maximum 1G ports: 48
- Maximum 2.5G, 5G and 10G ports: 0
- Security: MACsec (802.1AE) on all ports
- Typical power (excluding PoE): 42W (43W maximum)
- Dimensions (H x W x D): 1.63 x 16.85 x 7.76 in (4.14 x 42.8 x 19.7 cm)
- Weight: 5.1 lbs (2.3 kg)
- Minimum EOS: 4.25.1
- Chassis support: CCS-758-CH and CCS-755-CH
- EOS licence group: LIC-MOD-G
- CloudVision licence group: MOD-G
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 10,000 ft (0 to 3,000 m)
- Certifications: RCM (Australia/New Zealand), FCC Class A, CE, UKCA, NRTL, VCCI and others

FAQs

Q: Which chassis does this line card fit?
A: It fits the CCS-758-CH 8-slot and CCS-755-CH 5-slot chassis of the Arista 750X Series. Minimum EOS is 4.25.1.

Q: What else is needed to run it in the chassis?
A: It needs a CCS-758-X3-SC or CCS-755-X3-SC switch card and a CCS-750-SUP100 or CCS-750-SUP25 supervisor. Uplink optics are provided on the supervisor modules.

Q: How much PoE does each port provide?
A: All 48 ports supply up to 30W PoE (802.3at PoE+ class). Total chassis capacity depends on the PWR-3351-AC-RED power supplies, rated 3300W at 220-240VAC or 1400W at 100-120VAC.

Q: How much power does the card draw?
A: The card draws 42W typical, 43W maximum, excluding PoE load.

Q: Which licences apply to the 750X platform?
A: The 750X modular platform uses the LIC-MOD-G EOS licence group and the MOD-G CloudVision licence group. Optional tiers include LIC-MOD-G-FLX-L (FLX-Lite), LIC-MOD-G-E (Enhanced) and LIC-MOD-G-V2 (EOS Extensions, Security and Partner Integration).
