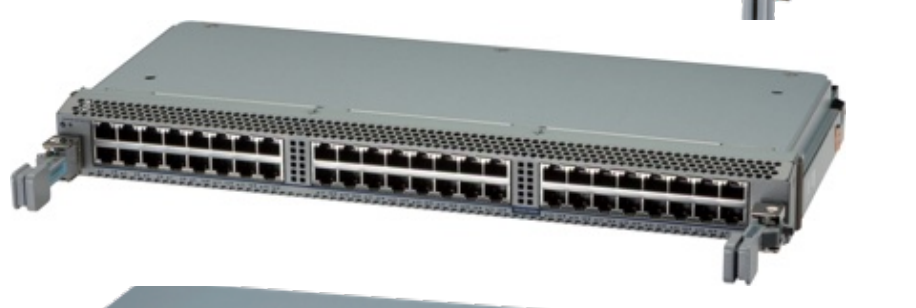

Arista CCS-750X-48T-LC | 750X 48-Port 1G RJ-45 Line Card, Non-PoE
SKU:CCS-750X-48T-LC
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Arista 750X 48-port line card adds high-density gigabit copper access to the Arista Cognitive Campus 750X modular chassis. It suits campus networks that need a large number of non-PoE 10/100/1000BASE-T connections, including Wi-Fi 6 and IoT designs with Layer 2 and Layer 3 segmentation, and it runs Arista EOS.
The card provides 48 x RJ45 ports supporting 10M, 100M and 1G speeds, with no PoE. It draws 42W typical and 43W maximum, and needs EOS 4.25.1 or later. Integrated 802.1AE MACsec capability is available on the access ports as a separately licensed feature, and the base EOS feature set is bundled with the system. Routing protocols such as BGP and OSPF need the EOS Enhanced licence.
This line card installs in the CCS-758-CH 8-slot and CCS-755-CH 5-slot chassis, alongside the 750X switch cards and the CCS-750-SUP100 or CCS-750-SUP25 supervisors. Optics are supported on the supervisor module ports, not on this copper line card.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Built-in 802.1AE 256-bit MACsec capability on access ports, separately licensed per system
- Hot-swap and insert of all modules in the modular chassis
- Runs Arista EOS with a single binary image and Stateful Fault Containment and Repair
- Manageable by Arista CloudVision with Secure Zero Touch Provisioning (ZTP)
- LANZ microburst detection, sFlow, IPFIX and FlowTracker telemetry
- Layer 2 and Layer 3 support including MLAG, VRF, VXLAN, EVPN, BGP, OSPF and IS-IS
- 802.1X multi-host and MAC-based authentication
- Smart System Upgrade (SSU) for hitless software upgrades
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: CCS-750X-48T-LC
- Ports: 48 x 1000BASE-T RJ45 (non-PoE)
- Speeds supported: 10M, 100M, 1G
- Max 1G ports: 48
- Max 10G ports: 0
- Maximum power: 43W
- Typical power: 42W
- Weight: 5.1 lbs (2.3 kg)
- Dimensions (HxWxD): 1.63 x 16.85 x 7.76 in (4.14 x 42.8 x 19.7 cm)
- Minimum EOS: 4.25.1
- Chassis support: CCS-758-CH and CCS-755-CH
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 10,000 ft (0 to 3,000 m)
- Integrated packet buffer memory (750X Series): 32MB
- MAC entries (750X Series): 160K max
- Security ACL entries ingress/egress (750X Series): 16K/6K
- Certifications: FCC Class A, ICES-003, CE, UKCA, RCM, VCCI, KCC, BSMI, TEC, ANATEL, ICASA, NRTL
FAQs
Q: Does this line card provide PoE?
A: No. This is a non-PoE line card, so it does not power endpoints over Ethernet. It draws 42W typical and 43W maximum from the chassis.
Q: Which chassis does it install in?
A: It installs in the Arista CCS-758-CH 8-slot and CCS-755-CH 5-slot chassis, alongside the 750X switch cards and the CCS-750-SUP100 or CCS-750-SUP25 supervisors.
Q: Which EOS version does it need?
A: It requires Arista EOS 4.25.1 or later.
Q: Is a licence required?
A: The base EOS feature set is bundled with the system. Routing such as BGP, OSPF and multicast needs the EOS Enhanced licence, and MACsec is a separately licensed feature per system.
Q: Can I use optics in this line card?
A: No. This is a copper RJ45 line card. Optics are supported on the SFP and QSFP ports of the supervisor module.
