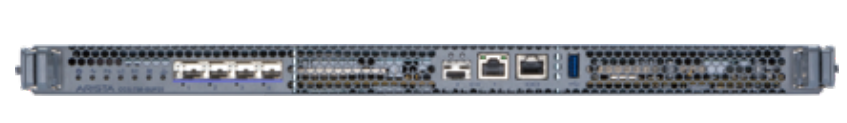

Arista CCS-750-SUP25 | 750X Supervisor Module, 4x 10/25G SFP, 100Gbps Uplink
SKU:CCS-750-SUP25
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The CCS-750-SUP25 is a supervisor module for the Arista 750X Series modular campus switch chassis. It runs the control and management plane and is aimed at high-density modular PoE campus access and aggregation, where a chassis can hold up to 384 PoE ports in 10RU (CCS-758) or 240 in 7RU (CCS-755). The 10/25G SFP uplinks suit sites that need 10G or 25G rather than 40G or 100G uplinks.
The module has four SFP 25G uplink ports supporting 1G, 10G and 25G, giving 100Gbps of uplink bandwidth per supervisor. All four uplinks stay active in a dual-supervisor deployment. It is built on a quad-core x86 CPU with 16GB of system memory and 120GB of storage, and draws 70W typical (80W maximum) from the chassis power supplies. It does not provide PoE.
It fits the CCS-758 8-slot and CCS-755 5-slot chassis and requires EOS 4.25.1 or later. The SFP ports accept 1G SX, LX and TX optics, 10G and 25G SFP optics, 25GBASE-CR DAC cables (1 to 5m), 25GBASE-AOC, 25GBASE-SR, 25GBASE-LR and 25G multi-rate optics. No licence is bundled with the supervisor.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- All uplinks remain active in a dual-supervisor deployment, with no disabled ports
- Uplinks stay available during supervisor switchover and software upgrades with SSU
- Dual supervisors provide 400Gbps aggregate uplink capacity
- 256-bit MACsec encryption supported on supervisor uplink ports
- Supports multi-rate and BiDi optics for migration from 10G to 25G
- USB port for additional local storage
- SFP and RJ45 ports for Ethernet management
- Hot-swappable module with an independent control plane for redundancy
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Module type: Supervisor module
- Uplink ports: 4 x SFP 25G (10/25G)
- Speeds supported: 1G, 10G, 25G
- Uplink bandwidth: 100Gbps
- Processor: Quad-core x86
- System memory: 16GB
- Storage: 120GB
- Typical power (maximum): 70W (80W)
- Chassis support: CCS-758 and CCS-755
- Minimum EOS: 4.25.1
- Dimensions (WxHxD): 42.8 x 2.6 x 19.7 cm
- Weight: 2.4 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000m
FAQs
Q: Which chassis does this supervisor fit?
A: It fits the Arista CCS-758 8-slot and CCS-755 5-slot modular chassis and requires EOS 4.25.1 or later.
Q: Does it include a software licence?
A: No licence is bundled with the supervisor. The chassis runs Arista EOS under the LIC-MOD-G licence group, with optional FLX-Lite, Enhanced, EOS Extensions and MACsec licences available.
Q: Which optics and cables work in the SFP uplinks?
A: The SFP ports take 1G SX, LX and TX optics, 10G and 25G SFP optics, 25GBASE-CR DAC (1 to 5m), 25GBASE-AOC, 25GBASE-SR, 25GBASE-LR and 25G multi-rate XSR and LR optics.
Q: Can I run two supervisors for redundancy?
A: Yes. Dual supervisors run with independent control planes, and all uplinks on both modules stay active. Uplinks remain available during switchover and software upgrades.
Q: How much power does the supervisor draw?
A: Typical draw is 70W with an 80W maximum, taken from the chassis hot-swap power supplies. The module does not provide PoE itself.
