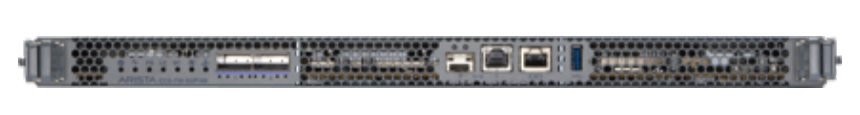

Arista CCS-750-SUP100 | 750X Supervisor Module, 2x 100G QSFP, 200Gbps

SKU:CCS-750-SUP100

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This supervisor module is a spare for the Arista 750X modular campus switch chassis, covering both the 5-slot CCS-755-CH and the 8-slot CCS-758-CH. It runs the control and management plane of the chassis and suits large enterprise wired and wireless access and aggregation deployments that need a resilient, redundant control plane.

The module provides 2 x 100G QSFP uplinks that support 40G and 100G, for 200Gbps of uplink bandwidth, and the ports also accept 1G, 10G and 25G pluggable optics and cables. It is built around a quad-core x86 CPU with 16GB of system memory and 120GB of SSD storage. Typical power draw is 79W with a maximum of 94W, supplied from the chassis. Local management is provided through a USB port, an RS-232 serial console port and choices of SFP and RJ45 Ethernet management ports.

The module has no licence of its own. The 750X system runs Arista EOS 4.25.1 or later, and 256-bit MACsec on the uplink ports is a separately licensed feature. The sibling CCS-750-SUP25 offers 4 x SFP 25G uplinks instead of QSFP.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- All supervisor uplinks stay active, even in a dual-supervisor deployment, with no disabled ports
- Uplinks remain available during supervisor switchover or software upgrades with Smart System Upgrade (SSU)
- Dual supervisors give 400Gbps of aggregate uplink capacity
- Multi-rate and bidi optics and cables support migration from 10G to 25G and 100G on existing fibre
- 256-bit MACsec on uplink ports (separately licensed)
- Common supervisor for the 5-slot and 8-slot chassis with 1+1 active/standby redundancy
- Hot-swappable module design
- Runs Arista EOS with CloudVision automation and visibility

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Uplink ports: 2 x 100G QSFP (40G/100G)
- Speeds supported: 1G, 10G, 25G, 40G, 100G
- Uplink bandwidth: 200Gbps
- Processor: quad-core x86
- System memory: 16GB
- Storage: 120GB SSD
- Typical power (maximum): 79W (94W)
- Chassis support: CCS-758-CH and CCS-755-CH
- Minimum EOS: 4.25.1
- Dimensions (WxHxD): 42.8 x 2.6 x 19.7 cm
- Weight: 2.5 kg
- Operating temperature (750X system): 0 to 40 C
- Storage temperature (750X system): -40 to 70 C
- Relative humidity (750X system): 5 to 90%
- Operating altitude (750X system): 0 to 3,000 m
- Management: USB port, RS-232 serial console, SFP and RJ45 Ethernet management port choices

FAQs

Q: Which chassis does this supervisor module fit?
A: It fits the CCS-755-CH 5-slot chassis and the CCS-758-CH 8-slot chassis, and requires EOS 4.25.1 or later.

Q: Does the supervisor module need a licence?
A: The module itself has no licence. The 750X system runs Arista EOS, with optional per-switch licences such as FLX-Lite (LIC-MOD-G-FLX-L), Enhanced (LIC-MOD-G-E), V2 (LIC-MOD-G-V2) and MACsec (LIC-MOD-G-MACSEC), plus CloudVision subscriptions.

Q: How is the module powered?
A: It is powered from the chassis and draws 79W typically, 94W maximum. The 755-CH and 758-CH chassis use PWR-3351-AC-RED 3300W AC PoE power supplies in N+N or N+1 redundancy.

Q: What optics can the uplink ports use?
A: The SFP/QSFP ports take 1G, 10G, 25G, 40G and 100G pluggable optics and cables, including multi-mode and single-mode with reaches from 100m to 10km.

Q: How does this differ from the CCS-750-SUP25?
A: The CCS-750-SUP100 provides 2 x 100G QSFP uplinks (40G/100G) for 200Gbps, while the CCS-750-SUP25 provides 4 x SFP 25G uplinks.
