Meraki MA-ANT-3-F6 | MA-ANT-3 Dual-Band Narrow Patch Antenna, 6-Port, 11.2 dBi
SKU:MA-ANT-3-F6
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

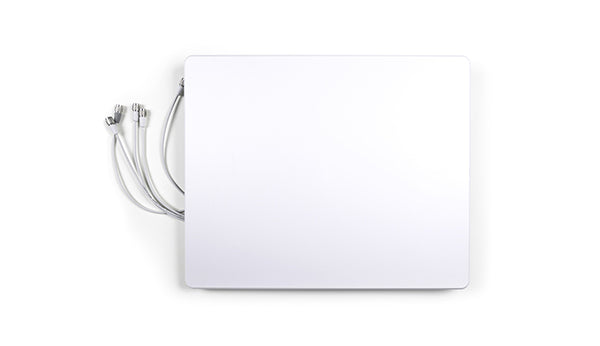

The Meraki MA-ANT-3-F6 is an indoor dual-band narrow patch antenna in the MA-ANT-3 range, designed for the Meraki MR46E and MR53E access points. Its focused 30 degree beam suits high ceilings of 25 ft (8 m) or more and smaller coverage zones with many clients, such as large lecture halls, indoor stadiums and event venues.
It covers both 2.4 GHz and 5 GHz, with 11.2 dBi gain on 2.4 GHz and 10.8 dBi on 5 GHz. Six RP-TNC ports connect to the access point, and the antenna uses linear polarisation at +/- 45 degrees with a 30 degree half-power beamwidth in both the horizontal and vertical planes. Despite the name, narrow refers to the coverage beam and not the physical size. At 660 x 530 x 130 mm and about 3.2 kg, the F6 is much larger than the E6 wide patch.
This is a passive antenna, so it needs no power, PoE, licence or subscription. It mounts to walls and poles using the MA-MNT-ANT-1 or MA-MNT-ANT-2 articulating arm mounts. It is intended for coverage within roughly 100 ft (30 m), and the MR42E uses the MA-ANT-3-F5 instead.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Narrow 30 degree beamwidth gives focused coverage for small zones under high ceilings
- Suited to high-density deployments and aesthetically sensitive installations
- Dual-band operation on 2.4 GHz and 5 GHz
- Six RP-TNC ports for the MR46E and MR53E
- Mounts to walls and poles with the MA-MNT-ANT-1 or MA-MNT-ANT-2 articulating arm mounts
- Passive design with no power or PoE requirement
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Connectors: 6 x RP-TNC
- Frequency range: 2.400-2.500 GHz and 5.150-5.875 GHz
- Gain: 11.2 dBi (2.4 GHz) / 10.8 dBi (5 GHz)
- Polarisation: Linear, +/- 45 degrees
- Half-power beamwidth, horizontal: 30 degrees
- Half-power beamwidth, vertical: 30 degrees
- Cables: Times AA-9303, 1 m
- Mounting: Wall and pole
- Dimensions: 660 x 530 x 130 mm (25.98 x 20.87 x 5.12 in)
- Weight: approx. 3.2 kg (7.1 lb)
- Material: PC-ABS
- Operating temperature: 0 to 40 C (32 to 104 F)
- Humidity: 5% to 93%
- Recommended ceiling height: 25+ ft (8+ m)
- Compatible access points: MR46E and MR53E
FAQs
Q: Does this antenna need a licence or subscription?
A: No. It is a passive antenna and needs no licence or subscription. The host access point, such as the MR46E or MR53E, requires its own Meraki licence.
Q: Which access points is the MA-ANT-3-F6 compatible with?
A: It is certified for the Meraki MR46E and MR53E indoor access points. The MR42E uses the MA-ANT-3-F5 antenna instead.
Q: Does it need power or PoE?
A: No. It is a passive antenna, so no power supply or PoE is required.
Q: How do I mount it?
A: It mounts to walls and poles using the MA-MNT-ANT-1 standard mounting arm or the MA-MNT-ANT-2 articulating arm mount.
Q: What environments is the narrow patch antenna best suited to?
A: It suits high ceilings of 25 ft (8 m) or more with smaller coverage zones and high client density, such as large lecture halls, indoor stadiums and event venues. It is not intended for ranges beyond about 100 ft (30 m).
