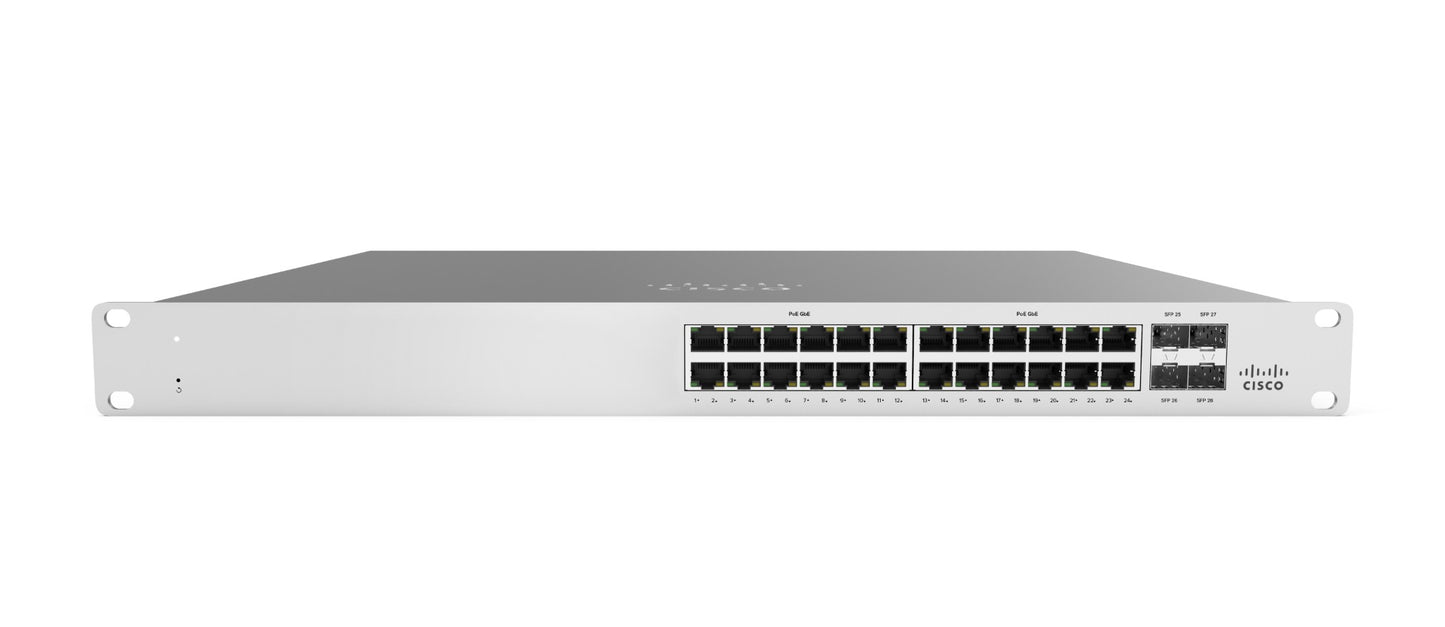

Meraki MS120-24-HW Cisco 24 port GgbE 4 x 1GbE SFP L2 Compact Switch Cloud Managed

Features

• 24 x 1GbE RJ45 ports
• 4 x 1GbE SFP ports for uplinks
• Cloud-managed Layer 2 switch
• Compact and fanless design
• Network-wide visibility and control
• Zero-touch provisioning
• Remote troubleshooting tools
• Customizable alerts and notifications
• Seamless firmware updates
• Role-based administration

Technical Specifications

• Ports: 24 x 10/100/1000BASE-T RJ45, 4 x 1GbE SFP
• Management: Meraki Cloud Managed
• Throughput: Up to 128 Gbps switching capacity
• Forwarding Rate: 95.24 Mpps
• Jumbo Frame Support: Yes
• Stacking: No
• QoS: 802.1p and DiffServ
• MAC Address Table: 16K entries
• Latency: <5 µs
• Dimensions: 10.58 x 10.4 x 1.08 inches
• Weight: 1.69 kg (3.73 lbs)
• Power: 100-240V AC, 50-60 Hz
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 158°F (-20°C to 70°C)
• Humidity: 5% to 95% non-condensing
• Certifications: FCC, IC, CE, UL, CB, CCC

Frequent Ask Questions

• What are the key features of the Meraki MS120-24-HW switch?

The Meraki MS120-24-HW is a 24-port Gigabit Ethernet switch with 4 SFP uplink ports. It provides Layer 2 switching and is managed through the cloud using the Meraki Dashboard, which offers simplified management, monitoring, and configuration.

• Is the Meraki MS120-24-HW suitable for small to medium-sized businesses?

Yes, the Meraki MS120-24-HW is designed to meet the needs of small to medium-sized businesses, offering scalability, efficient network management, and robust security features.

• How does cloud management benefit network administrators using the MS120-24-HW?

Cloud management via the Meraki Dashboard provides the ability to configure, manage, and monitor the switch from any location with an internet connection. This centralized management simplifies tasks such as firmware updates, network troubleshooting, and real-time monitoring.

• Does the MS120-24-HW support advanced security features?

Yes, the Meraki MS120-24-HW includes advanced security features such as Access Control Lists (ACLs), IEEE 802.1X Port Security, and MAC Address Bypass, ensuring secure network access and data integrity.

• What is the maximum power consumption of the Meraki MS120-24-HW?

The maximum power consumption of the Meraki MS120-24-HW is 35W under full load conditions.

• Can the MS120-24-HW be mounted in a standard 19-inch rack?

Yes, the Meraki MS120-24-HW comes with mounting hardware that supports installation in a standard 19-inch rack.

• Does the Meraki MS120-24-HW support VLAN configurations?

Yes, the MS120-24-HW supports VLAN configurations, allowing for secure and segmented network traffic to enhance performance and security.

• Are there any prerequisites for using the cloud management features of the MS120-24-HW?

To use the cloud management features, a Meraki cloud license is required. Once the license is active, the device can be managed through the Meraki Dashboard.
