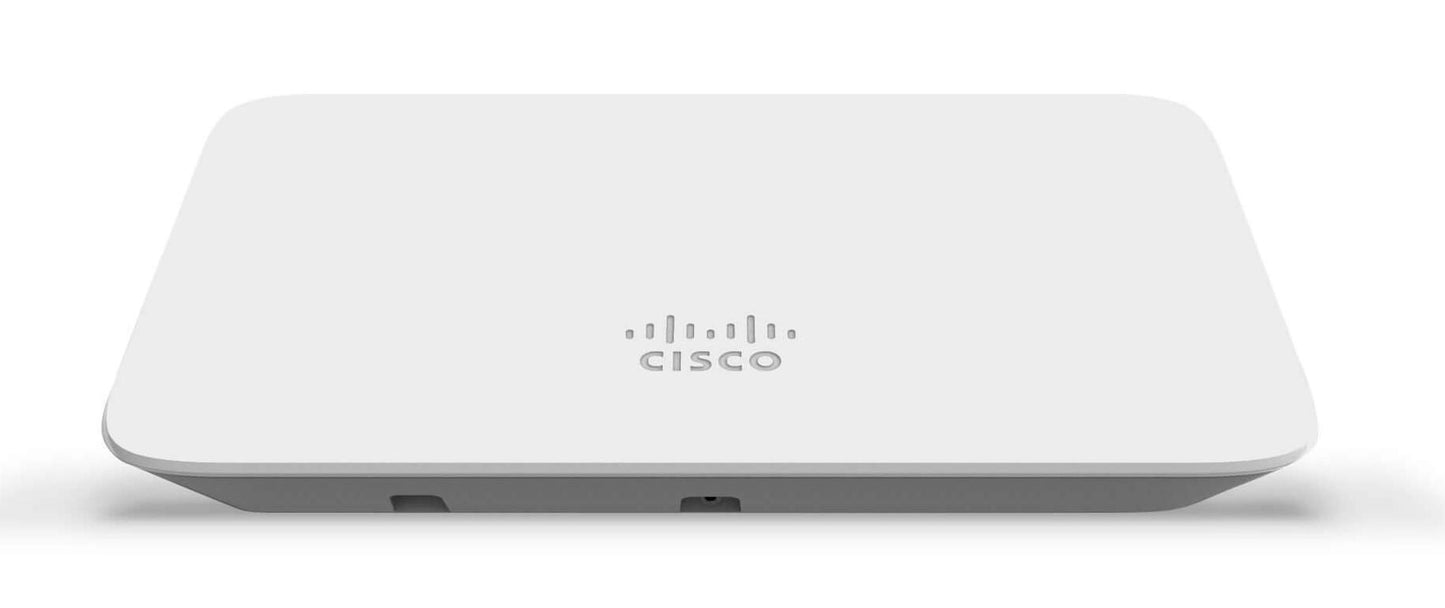

Meraki MR20-HW Cisco MR20 Cloud Managed 802.11ac AP

Features

• Cloud-managed: Streamlined management through the Cisco Meraki dashboard
• 802.11ac: High-speed wireless connectivity supporting up to 867 Mbps
• 2x2 MU-MIMO (Multiple User - Multiple Input Multiple Output) with two spatial streams
• Dual-band operation: Supports both 2.4 GHz and 5 GHz frequency bands
• Automatic RF optimization: Ensures optimal performance in all environments
• Integrated enterprise security and guest access: Advanced security protocols with easy guest access provisioning
• Zero-touch provisioning: Simplifies deployment with plug-and-play setup
• Application-level visibility and control: Deep visibility into network activity and the ability to manage bandwidth usage per application
• Layer 7 traffic shaping: Advanced traffic management with Layer 7 firewall rules

Technical Specifications

• Product Type: Wireless Access Point
• Hardware Model: MR20-HW
• Standards: IEEE 802.11a/b/g/n/ac
• Radio Configurations: Dual band, 2x2:2 (MU-MIMO)
• Transmission Speed: Up to 867 Mbps
• Frequency Bands: 2.4 GHz and 5 GHz
• Range: Indoor range up to 100 meters depending on the environment
• Antenna: Integrated omni-directional antennas
• Ports: 1 x Gigabit Ethernet port
• Power: Supports 802.3af PoE or DC power (12V, 1A)
• Security: WPA2-Enterprise, WPA2-PSK, WEP, 802.1X
• Management: Cloud-managed through Cisco Meraki dashboard
• Dimensions: 180mm x 114mm x 29mm (7.1" x 4.5" x 1.1")
• Weight: 240g (0.53 lbs)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: 5% to 95% non-condensing

Frequent Ask Questions

• What is the Meraki MR20-HW Cisco MR20 Cloud Managed 802.11ac AP?

  The Meraki MR20-HW is a cloud-managed wireless access point designed by Cisco. It supports the 802.11ac wireless standard and offers reliable Wi-Fi connectivity for small offices, retail shops, and other small-scale environments.

• What are the key features of the Cisco MR20?

  The key features of the Cisco MR20 include:

  • Cloud-based management with the Meraki dashboard
  • 802.11ac Wave 2 technology
  • Integrated Layer 7 application traffic shaping
  • Automatic firmware updates
  • Built-in enterprise security and guest access

• How do you manage the Meraki MR20-HW AP?

  The Meraki MR20-HW AP is managed through the Meraki cloud-based dashboard. Administrators can configure, monitor, and troubleshoot the network remotely from any device with internet access.

• What type of environments is the MR20-HW suitable for?

  The MR20-HW is suitable for small office environments, retail spaces, and other small-scale deployments where high-performance wireless connectivity is needed.

• Does the MR20-HW support both 2.4 GHz and 5 GHz bands?

  Yes, the MR20-HW supports dual-band 2.4 GHz and 5 GHz for optimized wireless performance and flexibility.

• What security features are included in the Meraki MR20?

  The MR20 includes several security features such as WPA2-Enterprise encryption, integrated firewall, and intrusion prevention. It also supports guest access isolation and role-based access control.
