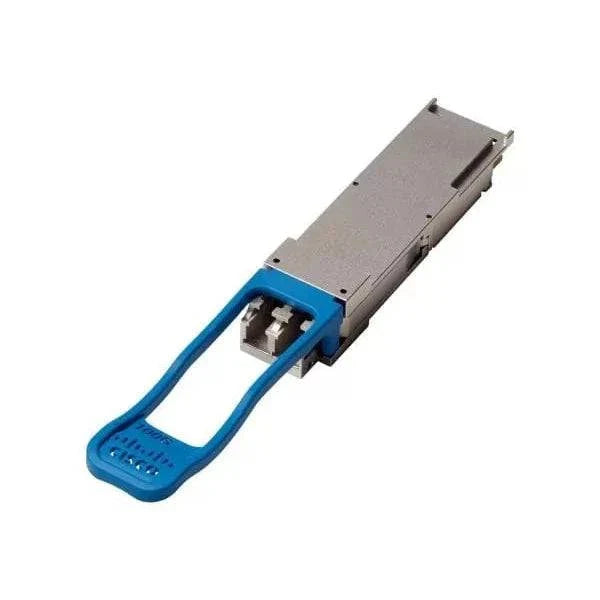

Meraki MA-QSFP-40G-LR4 Cisco 40 GbE QSFP+ LR4 Fiber Transceiver, 40GBASE-LR4, 10km

Features

• Supports 40 GbE connectivity for high-speed data transfer.
• Compliant with 40GBASE-LR4 standards for long-reach data transmission.
• Compatible with Cisco Meraki and other Cisco QSFP+ ports.
• Ensures reliable and stable performance over a distance of up to 10 kilometers.
• LC duplex connector interface for easy connectivity.
• Hot-swappable, allowing for easy installation and replacement without powering down.
• Low power consumption for energy-efficient networking.

Technical Specifications

• Product Type: Fiber Transceiver
• Supported Data Rate: 40 Gbps
• Mode: Single-mode fiber (SMF)
• Wavelength: 1310nm
• Maximum Distance: 10 km
• Connector Type: LC Duplex
• Form Factor: QSFP+
• Compliance: 40GBASE-LR4
• Power Consumption: < 3.5W
• Temperature Range: 0°C to 70°C (32°F to 158°F)
• Dimensions: 72x18.35x8.5 mm
• Weight: Approximately 75 grams

Frequent Ask Questions

• What is the Meraki MA-QSFP-40G-LR4?

  The Meraki MA-QSFP-40G-LR4 is a 40 GbE QSFP+ transceiver module designed for use with Cisco Meraki switches and routers. It supports 40GBASE-LR4 standard and can transmit data over single-mode fiber up to a distance of 10 kilometers.

• What type of performance can I expect from the Meraki MA-QSFP-40G-LR4?

  The Meraki MA-QSFP-40G-LR4 provides high-speed 40 Gigabit Ethernet connections and is optimized for long-range data transmission up to 10 kilometers using single-mode fiber (SMF).

• What connectors are compatible with the MA-QSFP-40G-LR4?

  The module is designed with LC duplex connectors, making it compatible with standard LC-terminated single-mode fiber cables.

• What is the wavelength of the MA-QSFP-40G-LR4 transceiver?

  The transceiver operates at a wavelength of 1310 nm for data transmission.

• Is the Meraki MA-QSFP-40G-LR4 hot-swappable?

  Yes, the Meraki MA-QSFP-40G-LR4 is hot-swappable, allowing for easy installation and replacement without the need to power down the network device.

• Does the MA-QSFP-40G-LR4 support Digital Diagnostic Monitoring (DDM)?

  Yes, the transceiver includes Digital Diagnostic Monitoring capabilities for real-time monitoring of various operating parameters.
