Meraki MS225-48 Cisco Stackable Layer-248-portgigabitEthernet switch with 4 SFP+ interfaces

Meraki MS225-48 Cisco Stackable Layer-248-portgigabitEthernet switch with 4 SFP+ interfaces

SKU: MS225-48

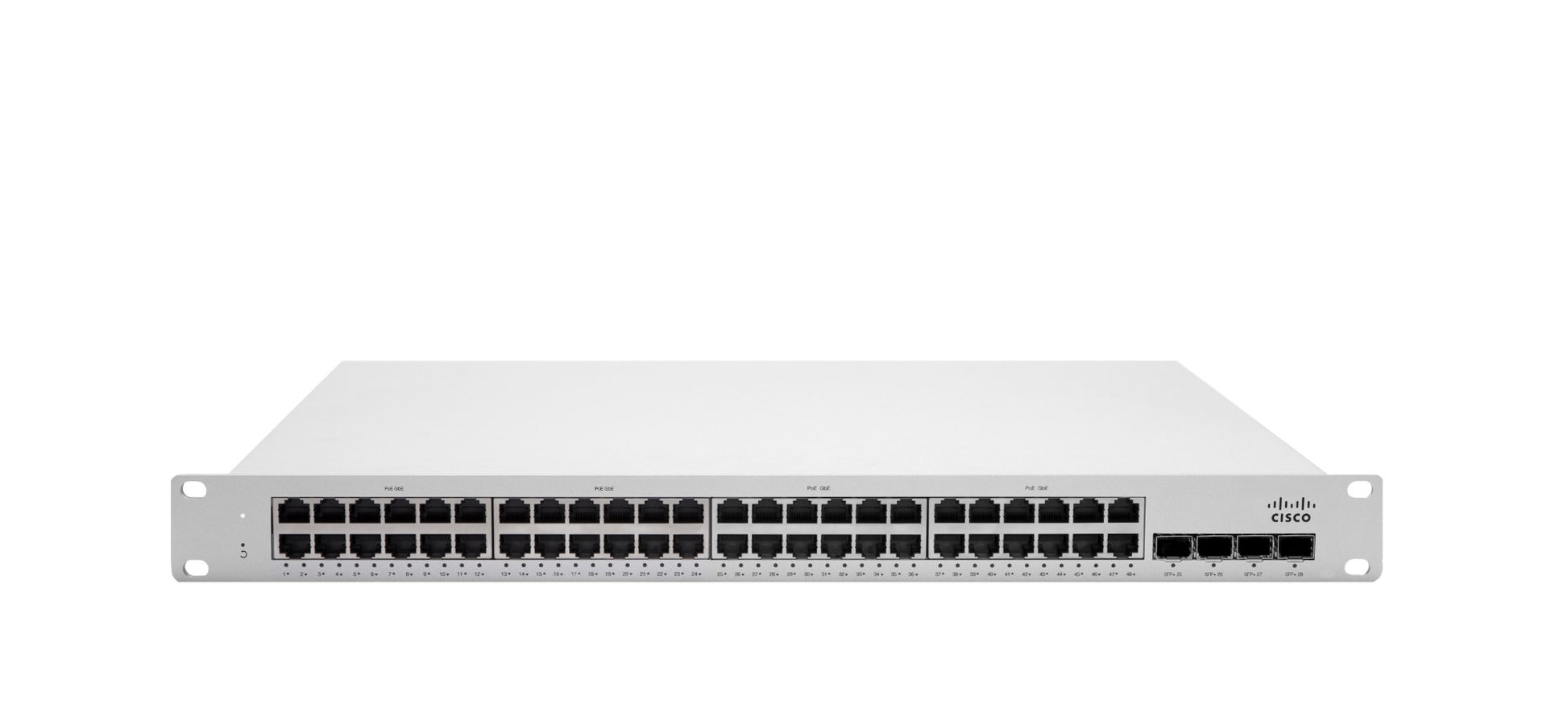

The Meraki MS225-48 is a high-performance Cisco stackable Layer 2 Ethernet switch, designed for diverse and demanding enterprise environments. It features 48 Gigabit Ethernet ports to connect a wide range of devices within your network. Additionally, it boasts 4 SFP+ interfaces that offer high-speed uplink capabilities. Engineered with simplicity and scalability in mind, this switch is managed through a cloud-based interface that provides streamlined configuration and monitoring. Its advanced security features and robust performance make the Meraki MS225-48 an ideal choice for enhancing enterprise network efficiency and reliability.

Features
  • 48-port Gigabit Ethernet connectivity
  • 4 SFP+ interfaces for high-speed uplinks
  • Layer 2 management capabilities
  • Stackable design for easy network expansion
  • Advanced security features
  • Seamless integration with Cisco Meraki dashboard
  • Support for VLANs and advanced network configurations
  • Auto-negotiation and auto-MDI/MDIX functionality
  • Energy-efficient design
  • Zero-Touch Provisioning

Technical Specifications

  • Switch Type: Stackable Layer 2
  • Ports: 48 x Gigabit Ethernet
  • Uplink Ports: 4 x 10G SFP+
  • Forwarding Bandwidth: 176 Gbps
  • Switching Capacity: 224 Gbps
  • Maximum Stacking Bandwidth: 80 Gbps
  • MAC Address Table Size: 32,000 entries
  • Jumbo Frame Support: Up to 9198 bytes
  • MTBF: Over 420,000 hours
  • Dimensions: 19.08" x 17.27" x 1.72" (without mounting brackets)
  • Weight: 13.86 lbs (6.29 kg)
  • Power Supply: Dual redundant, hot-swappable
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Operating Humidity: 5% to 95% non-condensing
  • Management: Cisco Meraki Cloud Managed
  • Compliance: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D, IEEE 802.3x
  • Quality of Service (QoS): 802.1p CoS and DSCP
  • Energy Efficiency: Compliant with IEEE 802.3az (Energy Efficient Ethernet)
  • Security: Integrated with advanced security features

Frequent Ask Questions
  • What are the key features of the Meraki MS225-48 switch?

    The Meraki MS225-48 switch is a stackable layer-2 switch with 48 gigabit Ethernet ports and 4 SFP+ interfaces. It offers simplified management through the Meraki Dashboard, network automation, and robust security features.

  • How many devices can be connected to the Meraki MS225-48 switch?

    The switch provides 48 gigabit Ethernet ports, allowing you to connect up to 48 devices directly. It also includes 4 SFP+ interfaces for additional uplink or stacking capabilities.

  • Can the Meraki MS225-48 switch be stacked with other Meraki switches?

    Yes, the Meraki MS225-48 switch supports stacking with up to 8 switches in a single stack, providing increased port capacity and simplified management.

  • What is the power consumption of the Meraki MS225-48 switch?

    Typically, the Meraki MS225-48 switch consumes around 80W under full load, but this can vary depending on the specific configuration and connected devices.

  • Does the Meraki MS225-48 support PoE (Power over Ethernet)?

    No, the Meraki MS225-48 model does not support PoE. If you need PoE capabilities, you should consider the Meraki MS225-48LP or Meraki MS225-48FP models which provide PoE capabilities.

  • How can I manage the Meraki MS225-48 switch?

    The Meraki MS225-48 switch is managed entirely through the Meraki Dashboard, a web-based interface that provides powerful tools for network configuration, monitoring, and troubleshooting.

  • What are the physical dimensions of the Meraki MS225-48 switch?

    The Meraki MS225-48 switch has physical dimensions of 1.72 x 19.08 x 15.96 inches (43.7 x 484.6 x 405.6 mm).

  • Is there any cooling mechanism in the Meraki MS225-48 switch?

    Yes, the Meraki MS225-48 switch includes integrated fans for cooling to ensure optimal operating temperatures and performance.
