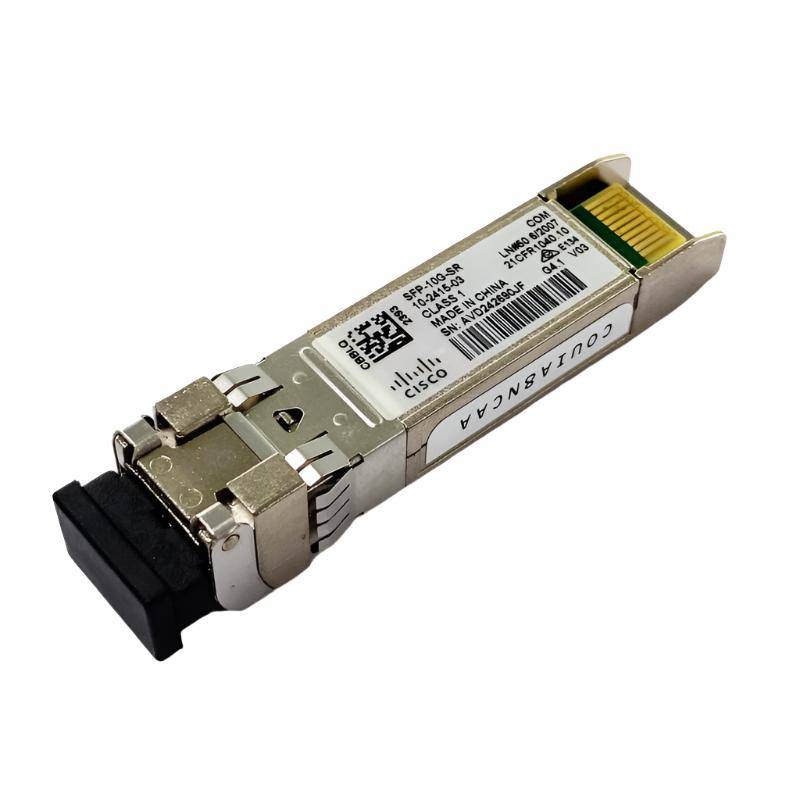

Cisco SFP-10G-SR | 10GBASE-SR SFP+ Transceiver, Multimode, 300m/400m

SFP-10G-SR

13 in stock

$735.90 inc. GST
$669.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 10GBASE-SR SFP+ optical transceiver from the Cisco 10GBASE SFP+ module range, built for short-reach 10 Gigabit Ethernet over multimode fibre. It is used for top-of-rack to aggregation uplinks and for switch-to-server or switch-to-switch links within a data centre, enterprise wiring closet, building or campus, as well as service provider transport.

The module transmits and receives at 850 nm (840 to 860 nm) and connects through dual LC/PC connectors. Link distance depends on the fibre grade: up to 300 m on OM3 (2000 MHzkm) and up to 400 m on OM4 (4700 MHzkm), with shorter reaches of 82 m on OM2, 66 m on 400 MHzkm 50 micron fibre, 33 m on 62.5 micron OM1 and 26 m on 62.5 micron FDDI-grade fibre. Maximum power consumption is 1 W, drawn from the host SFP+ port, and the commercial temperature range is 0 to 70 C. No licence or subscription is required. This standard variant supports FCoE and digital optical monitoring (DOM), unlike the S-Class SFP-10G-SR-S.

It is supported on a wide range of Cisco switches and routers, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, MDS 9000, ASR 1000/9000 and UCS platforms. Support varies by platform, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your host. It interoperates with other 10GBASE-SR optics over multimode fibre.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Smallest 10G form factor, for the greatest port density per chassis
- Hot-swappable, so it can be installed or replaced without powering down the host
- Supports a pay-as-you-populate model for investment protection
- Digital optical monitoring (DOM) for diagnostics
- Optical interoperability with 10GBASE XENPAK, X2 and XFP interfaces on the same link
- Cisco ID feature lets the host platform identify the module as certified and tested by Cisco
- Supports FCoE, unlike the S-Class SFP-10G-SR-S

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Standard: IEEE 802.3 10GBASE-SR
- Data rate: 10 Gigabit Ethernet
- Form factor: SFP+, hot-swappable
- Wavelength: 850 nm (840 to 860 nm transmit and receive)
- Cable type: Multimode fibre (MMF)
- Connector: Dual LC/PC (patch cords with APC connectors not supported)
- Reach on 62.5 micron FDDI-grade (160 MHzkm): 26 m
- Reach on 62.5 micron OM1 (200 MHzkm): 33 m
- Reach on 50 micron (400 MHzkm): 66 m
- Reach on 50 micron OM2 (500 MHzkm): 82 m
- Reach on 50 micron OM3 (2000 MHzkm): 300 m
- Reach on 50 micron OM4 (4700 MHzkm): 400 m
- Transmit power: maximum -1.2 dBm, minimum -7.3 dBm
- Receive power: maximum -1.0 dBm, minimum -9.9 dBm
- Power consumption: 1 W max
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 75 g or less
- Bail latch colour: Beige
- Digital optical monitoring: Supported
- Safety: Laser Class 1 (21CFR-1040, IEC60825-1)

Also Known As

SFP-10G-SR=

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required. The module is powered from the host SFP+ port and draws a maximum of 1 W.

Q: What distance can it reach over multimode fibre?
A: It reaches up to 300 m on OM3 and 400 m on OM4 fibre. Shorter fibre grades reduce the reach, for example 82 m on OM2 and 33 m on 62.5 micron OM1.

Q: Which Cisco platforms is it supported on?
A: It is supported on a wide range of Cisco switches and routers, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, MDS 9000, ASR 1000/9000 and UCS. Not every platform supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your host.

Q: How does it differ from the SFP-10G-SR-S?
A: This is the standard SFP-10G-SR with a commercial temperature range of 0 to 70 C and support for FCoE. The S-Class SFP-10G-SR-S does not support FCoE.

Q: Can it link to other 10G optics types?
A: Yes, it interoperates with other 10GBASE-SR optics over multimode fibre. It is also optically interoperable with 10GBASE XENPAK, X2 and XFP interfaces on the same link.

Q: What fibre connector does it use?
A: It uses a dual LC/PC connector. Patch cords with APC connectors are not supported.
