Cisco

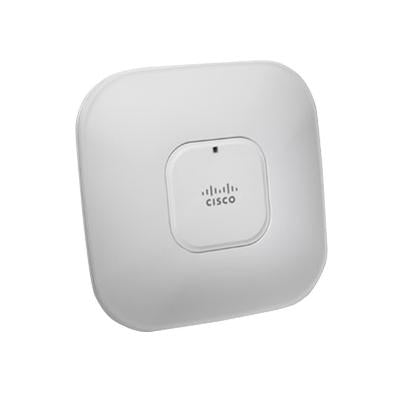

Cisco AIR-CAP2602I-Z-K9 | 802.11n dual-band, 3x4:3 MIMO, CleanAir, CAPWAP, internal antennas, 1x 1GbE PoE (802.3af), Z domain

SKU:AIR-CAP2602I-Z-K9

Regular price POA
POA
POA
Sale Sold out
Shipping calculated at checkout.

Description

Enterprise dual-band 802.11n access point with 3x4:3 MIMO for up to 450 Mbps per band and integrated omnidirectional antennas for streamlined ceiling or wall installs. CleanAir reduces RF interference and ClientLink enhances performance for mixed client types. Requires a compatible wireless LAN controller (CAPWAP). Single 10/100/1000BASE-T uplink with 802.3af PoE simplifies cabling. Regulatory domain Z; verify channel and power compliance for your region.

Features

- Integrated-antenna, low-profile design for rapid installs
- 3x4:3 MIMO 802.11n with up to 450 Mbps per band
- CleanAir for proactive RF interference mitigation
- ClientLink beamforming to enhance mixed-client performance
- Centralized control via CAPWAP on compatible controllers
- 1x GbE uplink with 802.3af PoE

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is a controller required?
A: Yes. This CAP variant operates in controller-based mode (CAPWAP) and must join a compatible wireless LAN controller.

Q: Does it have built-in antennas?
A: Yes. The I model uses integrated omnidirectional antennas, no external antennas required.

Q: Can it run autonomously?
A: Some units can be converted by loading an autonomous image, depending on software access and licensing. Confirm before purchase.

Q: What power is needed?
A: 802.3af PoE supplied over the Gigabit Ethernet port from a PoE switch or injector (not included).

Q: What throughput can I expect?
A: Up to 450 Mbps per band at the PHY layer with 3 spatial streams and 40 MHz channels; real-world throughput will be lower.

Q: What does Z domain mean?
A: It denotes a specific RF regulatory domain; ensure compliance with local channel and power regulations.

Technical Specifications

- Wi-Fi standard: IEEE 802.11a/b/g/n (dual-band concurrent)
- MIMO: 3x4:3 spatial streams (up to 450 Mbps per radio with 40 MHz channels)
- Bands: 2.4 GHz and 5 GHz
- Antenna type: Internal omnidirectional (integrated)
- Management mode: Controller-based (CAPWAP)
- Interference mitigation: CleanAir
- Client optimization: ClientLink beamforming
- Ethernet uplink: 1x 10/100/1000BASE-T (RJ-45)
- Power: IEEE 802.3af PoE (via uplink)
- Mounting options: Ceiling or wall
- Security: WPA2/AES, 802.1X/EAP (controller policies apply)
- Regulatory domain: Z
