Cisco

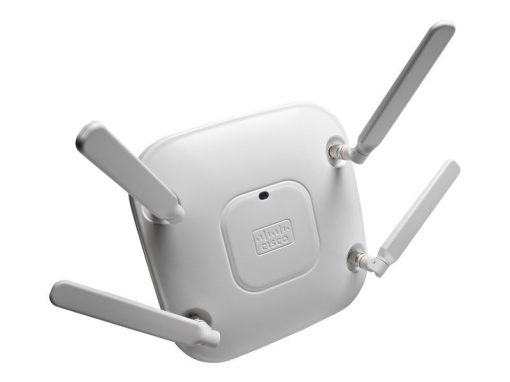

Cisco AIR-CAP2602E-Z-K9 | 802.11n dual-band, 3x4:3 MIMO, CleanAir, CAPWAP, external antennas (RP-TNC), 1x 1GbE PoE (802.3af), Z domain

SKU:AIR-CAP2602E-Z-K9

Regular price POA
POA
POA
Sale Sold out
Shipping calculated at checkout.

Description

Enterprise dual-band 802.11n access point with 3x4:3 MIMO for up to 450 Mbps per band. External RP-TNC antenna connectors enable tailored coverage design. CleanAir reduces RF interference and ClientLink enhances performance for mixed client types. Requires a compatible wireless LAN controller (CAPWAP). Single 10/100/1000BASE-T uplink with 802.3af PoE for streamlined deployment. Regulatory domain Z; verify channel and power compliance for your region.

Features

- 3x4:3 MIMO 802.11n for high-density, up to 450 Mbps per band
- CleanAir technology to detect and mitigate RF interference
- ClientLink beamforming to improve legacy and mixed-client performance
- External antenna connectors (RP-TNC) for customizable coverage
- Gigabit Ethernet uplink with 802.3af PoE
- Controller-based operation for centralized policy and RF management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this access point require a controller?
A: Yes. This CAP variant operates in controller-based mode (CAPWAP) and must join a compatible wireless LAN controller.

Q: Are antennas included?
A: External antennas are required and sold separately. The unit provides RP-TNC connectors for supported antenna options.

Q: Can it be converted to autonomous mode?
A: Some units can be converted by loading an autonomous image; availability depends on software access and licensing. Confirm before purchase.

Q: What power options are supported?
A: 802.3af PoE via the Gigabit Ethernet port is supported. A PoE switch or compatible injector is required (not included).

Q: What is the maximum data rate?
A: Up to 450 Mbps per band with 3 spatial streams and 40 MHz channels under ideal conditions.

Q: What does the Z regulatory domain mean?
A: It denotes a region-specific RF domain. Ensure channel and power settings comply with your local regulations.

Technical Specifications

- Wi-Fi standard: IEEE 802.11a/b/g/n (dual-band concurrent)
- MIMO: 3x4:3 spatial streams (up to 450 Mbps per radio with 40 MHz channels)
- Bands: 2.4 GHz and 5 GHz
- Antenna type: External; 4x RP-TNC connectors (shared for 2.4/5 GHz)
- Management mode: Controller-based (CAPWAP)
- Interference mitigation: CleanAir
- Client optimization: ClientLink beamforming
- Ethernet uplink: 1x 10/100/1000BASE-T (RJ-45)
- Power: IEEE 802.3af PoE (via uplink)
- Mounting options: Ceiling or wall
- Security: WPA2/AES, 802.1X/EAP (controller policies apply)
- Regulatory domain: Z
