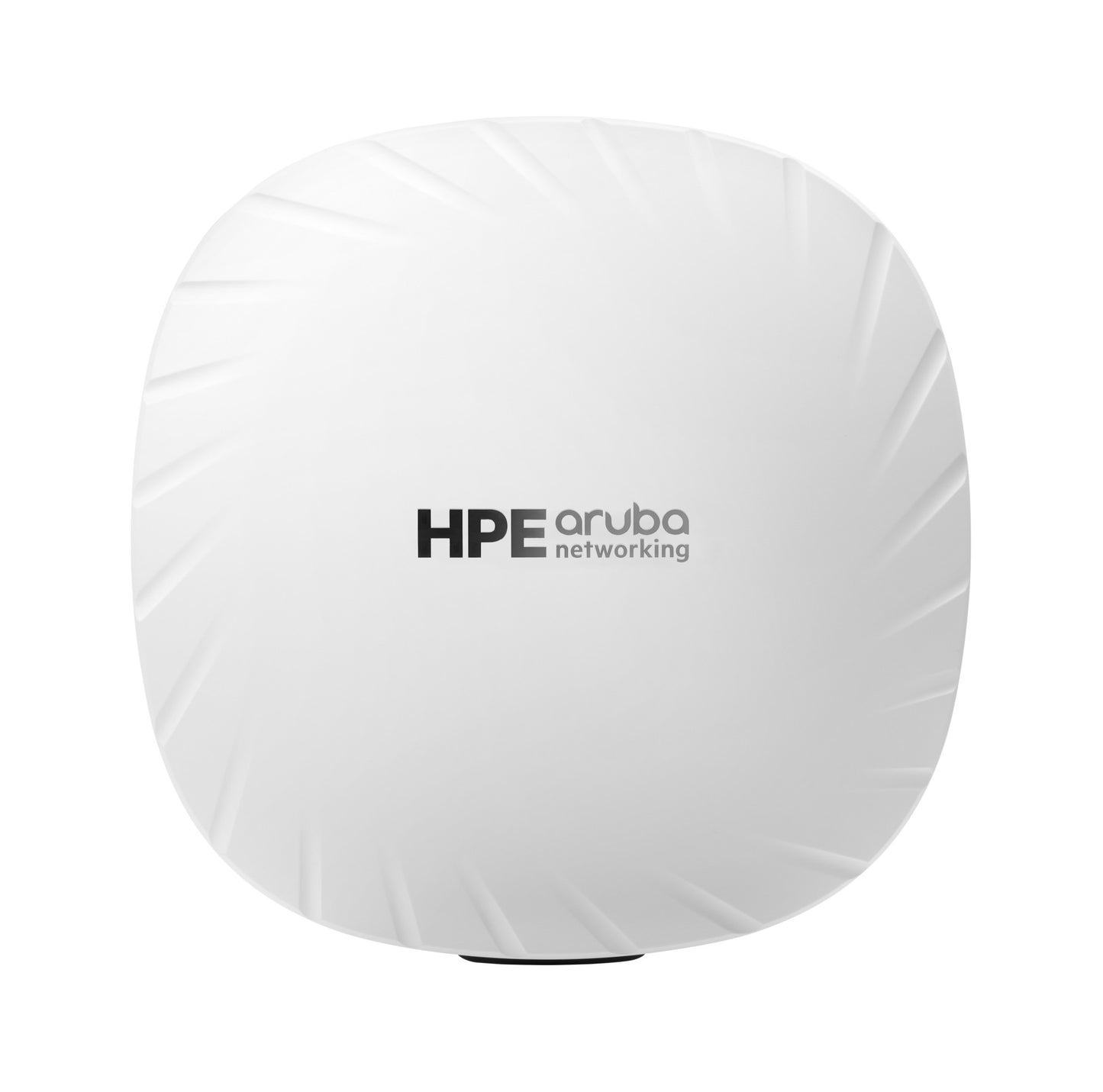

Aruba JZ336A AP-535 (RW) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP

Features

• Dual Radio 4x4:4 802.11ax technology for high performance
• Internal antennas for a sleek, unobtrusive design
• Advanced Wi-Fi security with WPA3 support
• Dynamic segmentation for enhanced network performance
• Integrated BLE and Zigbee for IoT applications
• Flexible network management options including cloud and on-premises
• Smart scanning radio for RF optimization and troubleshooting
• Support for up to 1024 associated clients per radio
• OFDMA and MU-MIMO technology for efficient network traffic handling
• Energy-efficient operation with 802.3bt Power over Ethernet (PoE) support

Technical Specifications

• Model: Aruba JZ336A AP-535 (RW)
• Radios: Dual Radio 4x4:4 802.11ax
• Frequency Bands: 2.4GHz and 5GHz
• Maximum Data Rates: Up to 4.8 Gbps
• Interfaces: 1x 10/100/1000/2500BASE-T Ethernet, 1x 10/100/1000BASE-T Ethernet, 1x USB 2.0, 1x Bluetooth Low Energy (BLE) and Zigbee (IEEE 802.15.4) radio
• Antenna: Integrated down-tilt omni-directional antennas
• Transmit Power: Up to 23 dBm
• Mounting: Ceiling and wall-mountable
• Dimensions: 200mm x 200mm x 55mm (7.87 in x 7.87 in x 2.17 in)
• Weight: 1.36 kg (3.0 lbs)
• Operating Temperature: 0°C to +50°C (+32°F to +122°F)
• Operating Humidity: 5% to 95% non-condensing

Frequent Ask Questions

• What is the Aruba JZ336A AP-535?

  The Aruba JZ336A AP-535 is a high-performance dual radio access point designed for campus environments. It supports the latest 802.11ax (Wi-Fi 6) standard and comes with internal antennas.

• What are the main features of the Aruba JZ336A AP-535?

  The main features include support for 802.11ax, dual radios with 4x4:4 spatial streams, internal antennas, and a unified campus AP design.

• What is the benefit of 802.11ax support?

  The 802.11ax standard, also known as Wi-Fi 6, offers higher data rates, increased capacity, improved power efficiency, and better performance in environments with many connected devices.

• What does \'unified campus AP\' mean?

  Unified campus AP means that the access point can be used in a variety of deployment modes, including standalone, controller-managed, or cloud-managed, providing flexibility for different network architectures.

• How many spatial streams does the Aruba AP-535 support?

  The Aruba AP-535 supports 4x4:4 spatial streams, providing high throughput and better performance for multiple devices.

• What type of antennas does the Aruba JZ336A AP-535 have?

  The Aruba JZ336A AP-535 is equipped with internal antennas.

• Is the Aruba AP-535 suitable for high-density environments?

  Yes, the Aruba AP-535 is designed to perform well in high-density environments such as lecture halls, auditoriums, and large conference rooms.

• Can the Aruba JZ336A AP-535 be mounted on a ceiling or wall?

  Yes, the Aruba JZ336A AP-535 can be mounted on either a ceiling or wall, providing flexibility in deployment locations.
