HPE JH236A | X242 40G QSFP+ to QSFP+ Passive DAC Cable, 5m
SKU:JH236A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

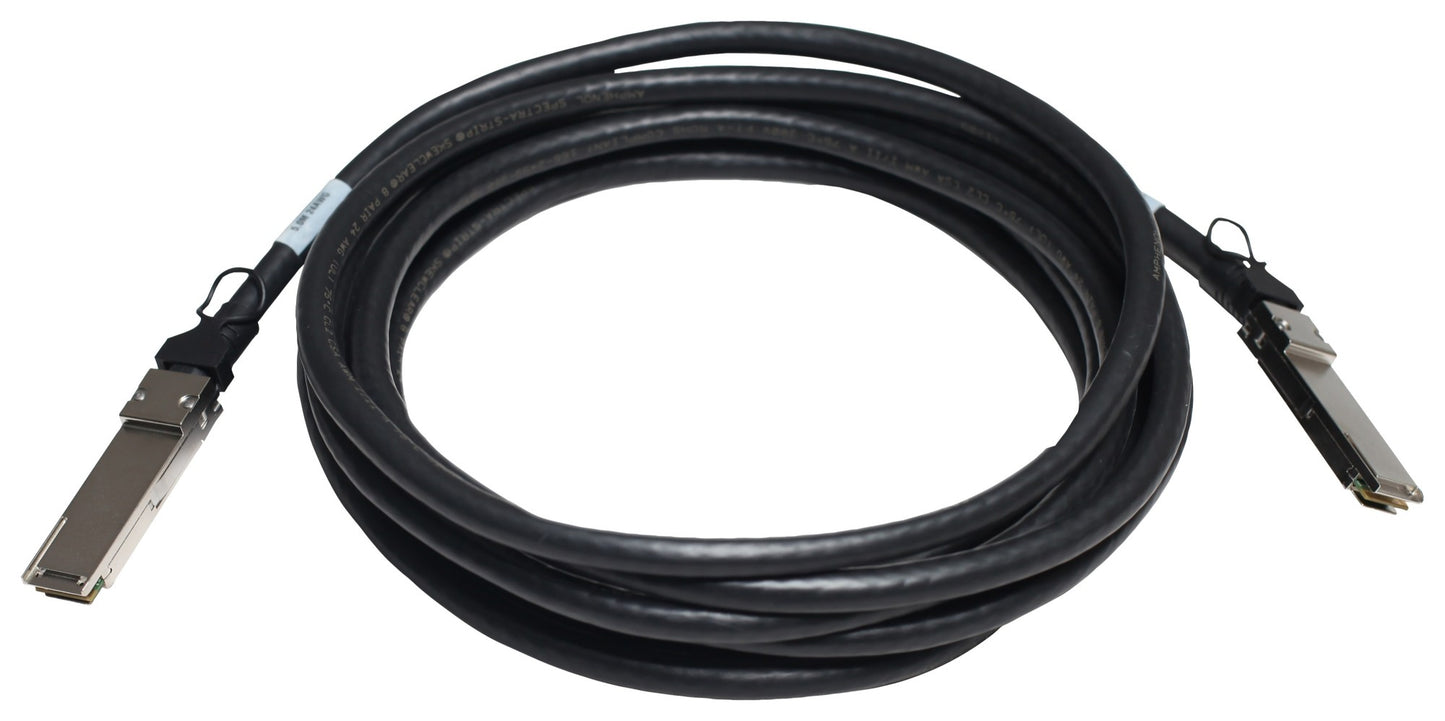

The HPE X242 JH236A is a 5 m passive copper direct attach cable with a QSFP+ connector on each end. It links 40GbE QSFP+ ports on switches and servers over short distances without separate optical transceivers, making it a practical choice for top-of-rack uplinks, switch-to-switch links and switch-to-server connections within a rack or between adjacent racks in a data centre.
The cable runs at 40 Gbps (40GBASE-CR4) and uses a passive copper design with no optics. Each end draws only 0.1 W from the host switch port, so no external power supply is needed. It carries a commercial temperature rating of 0 to 70 C and uses the hot-pluggable QSFP+ form factor. It sits in the same X242 family as the 1 m (JH234A) and 3 m (JH235A) cables, and this is the 5 m length.
It is listed in the HPE Aruba transceiver guide for QSFP+ (40G) DAC-capable switches, for example the Aruba 8320 (JL479A), where the minimum AOS-CX software is 10.00.0012. It is also listed for Aruba 8325 models. Check the HPE transceiver compatibility guide for the full switch list.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Direct 40GbE connection between QSFP+ ports without separate optical transceivers
- Passive copper design suited to short-reach links within and between adjacent racks
- Low power draw of 0.1 W per end
- Hot-pluggable QSFP+ form factor
- Suited to top-of-rack uplinks, switch-to-switch links and switch-to-server connections
- Same X242 family as the 1 m (JH234A) and 3 m (JH235A) cables
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product name: HPE X242 40G QSFP+ to QSFP+ 5m DAC Cable
- Cable length: 5 m (16.40 ft)
- Data rate: 40 Gbps (40GBASE-CR4)
- Connector (both ends): QSFP+
- Cable type: Passive direct attach copper (DAC), no optics
- Required power: 0.1 W per end
- Temperature rating: Commercial (0 to 70 C)
- Minimum AOS-CX software on Aruba 8320 (JL479A): 10.00.0012
FAQs
Q: Does this cable need a separate power supply?
A: No. It draws 0.1 W per end from the host switch port, so no external power is required.
Q: Which switches is it listed for?
A: It is listed in the HPE Aruba transceiver guide for QSFP+ (40G) DAC-capable switches, for example the Aruba 8320 (JL479A) and Aruba 8325 models. Check the HPE transceiver compatibility guide for the full switch list.
Q: What software version is required on the Aruba 8320?
A: On the Aruba 8320 (JL479A) the minimum AOS-CX software for this cable is 10.00.0012.
Q: How does the JH236A differ from the other X242 cables?
A: The X242 family uses the same QSFP+ to QSFP+ passive copper design across lengths. The JH236A is the 5 m cable, while the JH234A is 1 m and the JH235A is 3 m.
Q: Does it need optical transceivers at each end?
A: No. It is a direct attach copper cable with QSFP+ connectors built into both ends, so no separate optics are needed.
