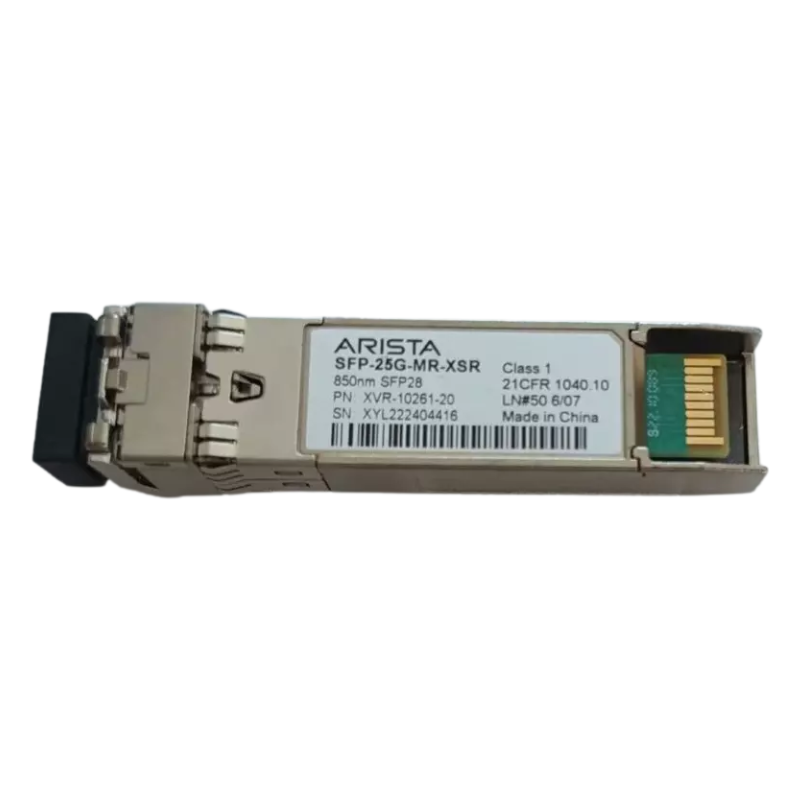

Arista SFP-25G-MR-XSR | 10G/25G SFP28 Transceiver, MR-XSR, 850nm, 300m OM4
SKU:SFP-25G-MR-XSR
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This Arista dual-rate SFP28 transceiver runs at 10G or 25G over duplex LC multimode fibre at 850nm. The MR-XSR (extended reach) variant is aimed at data centre server-to-switch and switch-to-switch links where 25G reach beyond standard SR is needed, and at mixed 10G/25G migration environments.
At 25G it reaches 200m on OM3 and 300m on OM4 fibre. At 10G it reaches 300m on OM3 and 400m on OM4. The module uses 50.0 um core multimode fibre, with a transmit power of -6 to 2.4 dBm and a receive power of -10.3 to 2.4 dBm at 25G. Maximum module power consumption is 1.5 W, and the operating case temperature range is 0 to 70 C.
It is supported on Arista platforms with SFP28 or SFP25 ports, and it interoperates with 10GBASE-SR optics when running at 10G. Arista's Transceiver and Cable Guide lists the supported platforms.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dual-rate operation: 25G and 10G on the same SFP28 module
- Extended reach over OM3 and OM4 multimode fibre compared with standard 25GBASE-SR
- Interoperates with 10GBASE-SR optics when run at 10G
- Duplex LC connector over standard 850nm multimode fibre
- Suited to mixed 10G/25G migration in data centre racks
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: SFP28, dual rate 10G/25G
- PHY type: 25GBASE-MR-XSR
- Wavelength: 850 nm
- Connector: LC duplex
- Fibre type: MMF, 50.0 um core
- Modal bandwidth: 2000 MHzkm (OM3) / 4700 MHzkm (OM4)
- Reach at 25G: 200m (OM3) / 300m (OM4)
- Reach at 10G: 300m (OM3) / 400m (OM4)
- Tx power (25G): -6 to 2.4 dBm
- Rx power (25G): -10.3 to 2.4 dBm
- Maximum module power consumption: 1.5 W
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Standards: IEEE 802.3, SFP+ SFF-8431, 8461 and 8472
FAQs
Q: What reach does it achieve over multimode fibre?
A: At 25G it reaches 200m on OM3 and 300m on OM4 fibre. At 10G it reaches 300m on OM3 and 400m on OM4.
Q: Can it link to 10GBASE-SR optics?
A: Yes. When run at 10G it interoperates with 10GBASE-SR optics. Attenuation may be required when connecting to legacy fixed-rate 10G optics to keep optical input power within limits.
Q: Is optical attenuation needed on short links?
A: Proper optical attenuation is required on shorter links to protect the receiver from permanent damage.
Q: What switch ports does it need?
A: It fits SFP28 or SFP25 ports on supported Arista platforms. Check Arista's Transceiver and Cable Guide for the supported platform list.
Q: How does the MR-XSR differ from standard 25GBASE-SR?
A: The MR-XSR is an extended-reach, dual-rate module. It reaches up to 300m on OM4 at 25G and also runs at 10G, giving more reach and flexibility than standard SR.
