Cisco AIR-PWRINJ1500-2 | Aironet 1500 56V 80W Indoor PoE Injector, 1x GbE

SKU:AIR-PWRINJ1500-2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

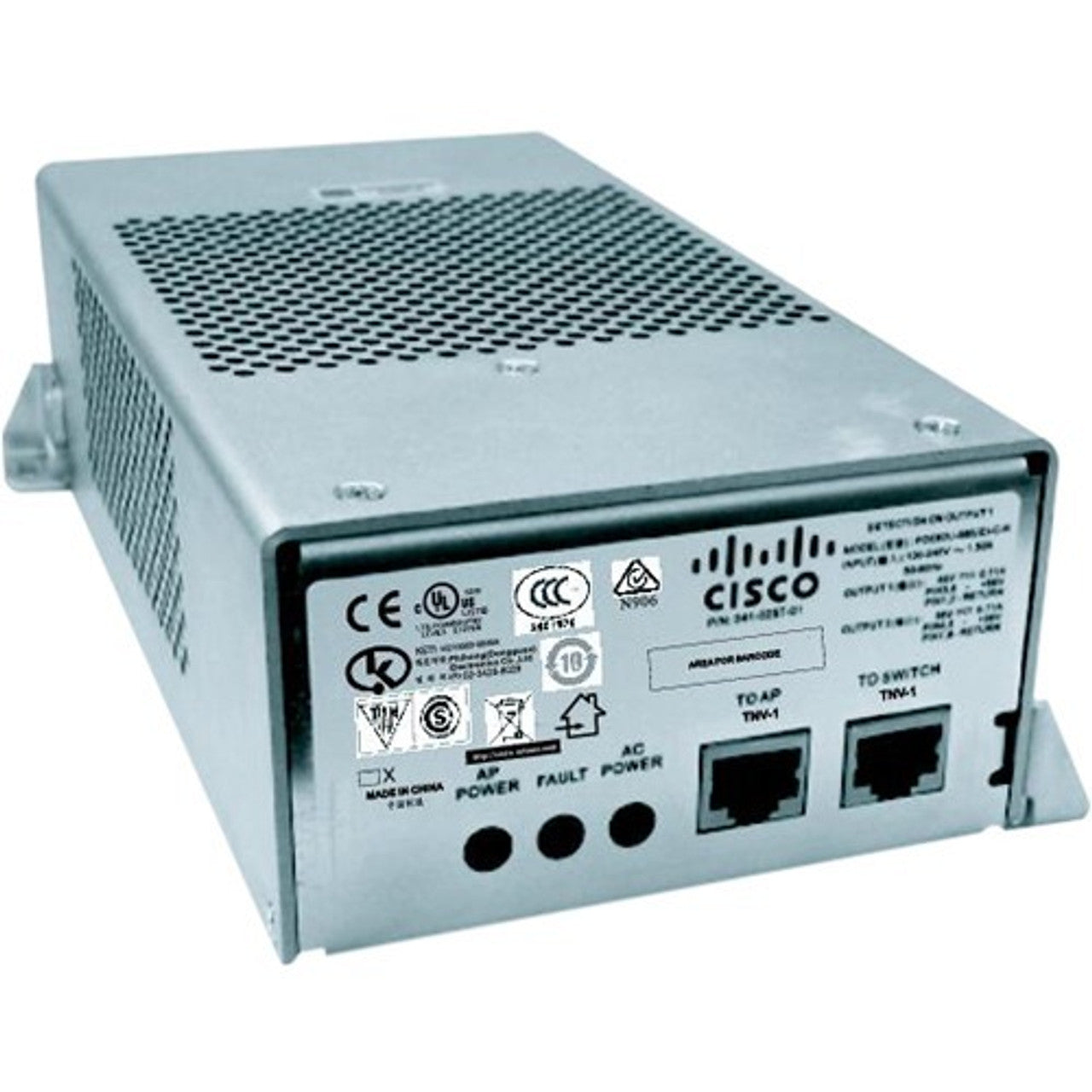

The Aironet 1500 Series power injector is an indoor unit that combines 56 VDC power from its internal supply with the Ethernet data signal and sends both to a connected Aironet access point over a single cable. It suits deployments where no suitable PoE switch port or local power is available at the access point location, particularly outdoor mesh and access point installations.

It provides one 10/100/1000 RJ-45 data input and one PoE output, delivering up to 80 W over all four wire pairs. Output is 56 VDC (54 to 57 VDC tolerance) at a maximum of 1.43 A, split across two outputs of 56 VDC at 0.71 A each. The wide-range AC input accepts 100 to 240 VAC through an IEC 60320 C14 inlet, and the unit operates from -40 to 55 C.

The injector is designed for shielded, outdoor-rated Cat 5e or higher cable (26 AWG). The run from injector to access point should be more than 3 m and less than 42 m, with a total cable length from switch to access point of no more than 100 m. It is intended for Cisco Aironet 1520, 1530, 1550 and 1570 series outdoor access points.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Combines 56 VDC power and data in one cable to the access point
- Delivers up to 80 W over all four wire pairs
- Allows access points to be placed where no PoE switch port or local power is available
- Supports shielded, outdoor-rated Cat 5e or higher Ethernet cabling
- Wide-range AC input of 100 to 240 VAC for use in any region
- Extended operating temperature range of -40 to 55 C

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Data/PoE port: 1 x 10/100/1000Base-T RJ-45
- Output voltage: 56 VDC
- Output voltage tolerance: 54 to 57 VDC
- Maximum output power: up to 80 W over all four wire pairs
- Maximum current: 1.43 A
- Output 1: 56 VDC at 0.71 A (pins 3,6 positive; pins 1,2 return)
- Output 2: 56 VDC at 0.71 A (pins 4,5 positive; pins 7,8 return)
- Input voltage: 100 to 240 VAC
- Input connector: IEC 60320 C14
- No load current: 15 mA
- Operating temperature: -40 to 55 C
- Storage temperature: -50 to 85 C
- Operating humidity: 10% to 90% non-condensing
- Storage humidity: 10% to 95% non-condensing
- Dimensions (L x W x H): 203 x 108 x 63 mm
- Cable type: shielded, outdoor-rated Cat 5e or higher, 26 AWG
- Cable length, access point to injector: more than 3 m and less than 42 m
- Cable length, access point to switch (total): not more than 100 m

FAQs

Q: Which access points does this injector power?
A: It is intended for Cisco Aironet 1520, 1530, 1550 and 1570 series outdoor access points. Confirm your exact access point model against the Cisco datasheet before ordering.

Q: Does it need a licence or subscription?
A: No. It is a passive power injector with no software, licence or subscription requirement.

Q: What input power does it require?
A: It runs from 100 to 240 VAC mains through an IEC 60320 C14 inlet and generates 56 VDC internally, with a maximum current of 1.43 A.

Q: What cable and distances are supported?
A: Use shielded, outdoor-rated Cat 5e or higher cable. The run from the injector to the access point should be more than 3 m and less than 42 m, and the total length from the switch to the access point must not exceed 100 m.

Q: Can it be installed outdoors?
A: No. The injector is an indoor unit, and the shielded outdoor-rated cable is what is run out to the access point.
