Arista

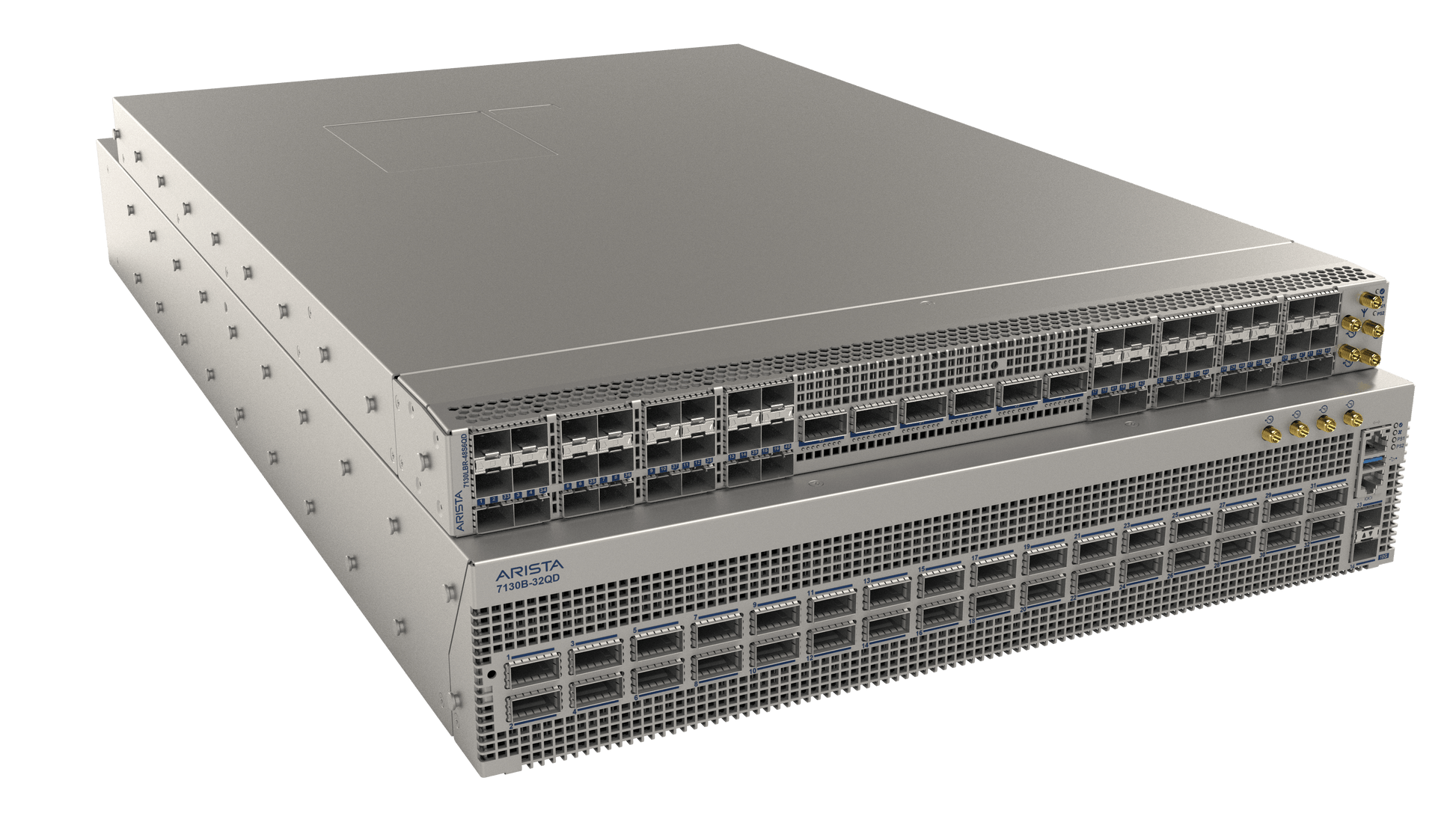

Arista DCS-7130-96L# | 7130LS 96-Port 10G SFP+ FPGA Switch, VU7P-2, OCXO

SKU:DCS-7130-96L#

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7130LS Series 96LS is a 2U Layer 1+ FPGA switch built for low-latency trading, market data fan-out, network monitoring and custom FPGA application development. It integrates a Xilinx Virtex UltraScale+ VU7P Speed Grade 2 FPGA with a quad-core x86 server, so Arista and third-party FPGA applications can run alongside deterministic Layer 1 forwarding.

The chassis provides 96 SFP+ ports supporting 100M to 11.3Gbps, plus 2 RJ45 ports. Layer 1 forwarding latency is 6 ns, MetaMux latency is 43 ns and MultiAccess latency is 55 ns. This model uses an OCXO clock and carries 32GB DDR for the FPGA, with 8GB RAM and a 64GB on-board SSD for the x86 CPU. It has 2 hot-swap power supply bays and 3 hot-swap fan tray bays, both 1+1 redundant. This configurable base chassis suits colo and exchange-facing deployments, MiFID II timestamping and secure connection sharing. Maximum power draw is 606W.

Supported power supplies are PWR-747AC and PWR-1900DC, with FAN-7130-2U fan trays. The SFP+ ports support 10GBASE-SR, LR, ER and DWDM optics, 10GBASE-CR direct attach cables and 1000BASE-T modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Deterministic Layer 1 forwarding with under 100 ps jitter
- Fully non-blocking, with the same latency for 1:N port mirroring
- Signal regeneration, media conversion, port mirroring, dynamic patching and tapping without rewiring
- Layer 1+ packet statistics on every link with an embedded influxdb database
- Eye diagram, tcpdump diagnostics on every port and LLDP
- Full SFP+ diagnostics including light levels, temperature and voltage
- Linux-based platform with industry-standard CLI and JSON RPC API
- Built-in application framework for packaging and deploying FPGA applications
- Integrated x86 server alongside the FPGA for Arista and third-party FPGA applications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 96 x SFP+, 2 x RJ45
- Port speeds: 100M to 11.3Gbps
- FPGA: Xilinx Virtex UltraScale+ VU7P Speed Grade 2
- FPGA memory: 32GB DDR
- Layer 1 latency: 6 ns
- MetaMux latency: 43 ns
- MultiAccess latency: 55 ns
- Clock: OCXO
- CPU: Quad-Core x86
- System memory: 8GB RAM
- On-board SSD: 64GB
- Internal 10G ports: 2
- Management ports: 2 x 100/1000
- USB ports: 1
- PPS input: 1 (5V TTL, 50 ohm)
- PPS output: 1 (5V TTL)
- Serial console: 1 x RS-232 (RJ-45)
- Power supplies: 2 hot-swap bays, 1+1 redundant
- Fan trays: 3 hot-swap, 1+1 redundant
- Compatible power supplies: PWR-747AC or PWR-1900DC
- Compatible fan tray: FAN-7130-2U
- Maximum power draw: 606W
- Form factor: 2U
- Dimensions (W x H x D): 44.8 x 8.7 x 37.9 cm
- Weight: 12kg
- Operating temperature: 0 to 40 C
- Relative humidity: 10% to 85% non-condensing
- Maximum altitude: 2,000m

FAQs

Q: Does this chassis include power supplies and fan trays?
A: No. The DCS-7130-96L# is the configurable base chassis. Power supplies and fan trays are selected to suit your airflow and power requirements.

Q: Which power supplies and fan trays does it use?
A: Power supplies are PWR-747AC (AC) or PWR-1900DC (DC), and the fan tray is FAN-7130-2U. Airflow direction depends on the fan and power supply variants chosen.

Q: What optics and cables work in the SFP+ ports?
A: The ports support 10GBASE-SR, SRL, LR, LRL, ER and DWDM optics, 10GBASE-CR direct attach cables from 0.5m to 5m, 40GBASE-CR4 and 1000BASE-T modules.

Q: Which FPGA applications are supported?
A: MetaWatch, MetaMux, MultiAccess, MetaProtect Firewall and ExchangeApp are supported, as is the FPGA Dev Kit for custom development. These applications are separate offerings from the base chassis.

Q: How does this model differ from other 7130 variants?
A: This unit is the 96LS configuration with a Xilinx VU7P Speed Grade 2 FPGA and an OCXO clock, supplied as a base chassis without PSUs or fan trays.
